What Role Does Contact Material Play in Circuit Breaker Performance?

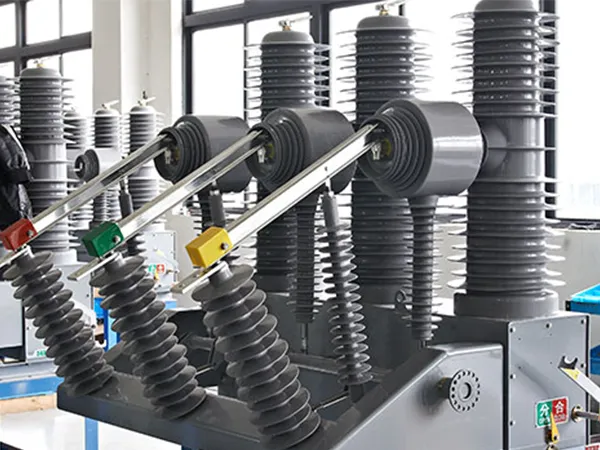

When you compare high voltage circuit breakers side by side, most of them look similar on the outside. The enclosures are robust, the ratings are printed clearly, and the mechanisms appear well-built. But what really separates a reliable circuit breaker from one that fails prematurely often comes down to something you cannot see—the contact material inside.

Contacts are where the actual work happens. Every time a circuit breaker opens or closes, its contacts must carry full load current, withstand the intense heat of arcing, and maintain stable electrical performance across thousands of operations. Pick the wrong contact material, and you deal with high contact resistance, excessive temperature rise, welding issues, and shortened service life. Understanding what makes a high voltage circuit breaker contact material perform well matters more than just comparing price tags or外观 specifications.

What Contact Materials Are Used in High Voltage Circuit ?

The contact material in a circuit breaker must balance several conflicting requirements: high electrical and thermal conductivity, resistance to arc erosion, anti-welding properties, and mechanical durability. No single material excels at all of these, which is why different applications call for different material choices.

Copper-Chromium (CuCr) Alloys

CuCr is one of the most widely used contact materials in medium and high voltage vacuum circuit breakers. The addition of chromium significantly improves hardness, arc erosion resistance, and anti-welding properties while maintaining good conductivity. CuCr contacts deliver excellent breaking capacity and voltage withstand strength, making them a standard choice for vacuum interrupters. Research has shown that higher chromium content correlates with faster dielectric recovery after current interruption, which contributes to more reliable performance.

Copper-Tungsten (CuW) Alloys

For gas-insulated high voltage circuit breakers, CuW is the most widely utilized contact material. Tungsten provides exceptional hardness and an extremely high melting point, while copper contributes superior electrical and thermal conductivity. This combination makes CuW uniquely suited for withstanding high-energy arcing, particularly in applications where the circuit breaker must interrupt large fault currents. The performance of CuW contacts is influenced by factors such as tungsten content and particle size—higher tungsten content improves erosion resistance but can affect conductivity.

Silver-Based Alloys (AgW, AgWC, AgSnO₂)

In applications requiring ultimate performance, silver-based composites offer distinct advantages. Silver tungsten carbide (AgWC) provides low and stable contact resistance with good arcing erosion properties. Silver tin oxide (AgSnO₂) retains silver's excellent conductivity while using oxide particles to suppress arcing and reduce material transfer. These materials are often found in low voltage circuit breaker applications and specialty switching devices.

How Does Contact Material Affect Circuit Breaker Performance?

The choice of contact material influences nearly every aspect of how a circuit breaker performs in the field.

Arc Erosion Resistance

During each interruption, the switching arc exposes contacts to extreme temperatures for up to 25 milliseconds. Over thousands of operations, this gradually erodes the contact surface. Materials with poor arc erosion resistance lose material faster, increasing contact gap and eventually reducing the circuit breaker's breaking capacity. CuW and CuCr alloys are specifically designed to minimize this erosion, with CuW offering superior performance in high-current applications.

Contact Resistance and Temperature Rise

Increased contact resistance leads to higher temperature rise, which accelerates material degradation. Surface oxidation can exert a more powerful effect on temperature characteristics than bulk electrical conductivity alone. The right contact material maintains stable, low resistance throughout the circuit breaker's service life, reducing energy loss and preventing overheating.

Anti-Welding Performance

When a circuit breaker closes under fault conditions, the contacts can weld together due to the heat and pressure. Anti-welding performance is therefore critical. CuCr contacts produced via powder metallurgy demonstrate outstanding resistance to welding due to their relatively low tensile strength. Research on CuCrTe alloys has shown that the addition of tellurium can further reduce tensile strength and enhance resistance to fusion welding.

What Should You Look for When Selecting a Circuit Breaker Contact Material?

Choosing the right contact material isn't a one-size-fits-all decision. Here are the key factors to evaluate.

Voltage Level and Interrupting Duty

Medium voltage vacuum circuit breakers typically use CuCr contacts, which deliver excellent breaking capacity in this range. High voltage gas circuit breakers more commonly use CuW, where the tungsten component provides the necessary arc erosion resistance for large fault currents.

Operating Frequency

Frequent switching operations accelerate contact wear. Applications requiring frequent capacitor bank switching or repeated load interruptions demand materials with superior erosion resistance and mechanical durability.

Environmental Conditions

The surrounding environment affects contact performance. Oxidation is a particular concern, as surface oxidation can increase contact resistance and temperature rise. Materials with good oxidation resistance, such as silver-based alloys, may be preferred in certain applications.

Summary

The contact material inside a circuit breaker is not a minor specification—it is a fundamental determinant of reliability, service life, and overall performance. From CuCr in vacuum interrupters to CuW in gas-insulated designs, each material choice represents a deliberate trade-off between conductivity, erosion resistance, welding behavior, and cost.

What to take away:

• CuCr alloys offer excellent breaking capacity and anti-welding performance for medium voltage vacuum circuit breakers
• CuW materials provide superior arc erosion resistance for high voltage gas circuit breakers
• Contact material directly affects arc erosion, contact resistance, temperature rise, and anti-welding behavior
• The right material choice depends on voltage level, interrupting duty, operating frequency, and environmental conditions
