KYN61-40.5 Series switchgear panel is a MV air-insulated switchgear (AIS) for primary distribution, with vacuum circuit-breaker has been designed for the various operating requirements in public and industrial medium-voltage distribution systems.

Feature

Provides Middle Rolling and Floor Roiling two different withdrawble types, can meet all our customers' technical requirements and operating features.

Reliable "anti-5" mechanical latch, convenient and safe maintenance,

Both VCB of ZN85-40.5/VS1-40.5 developed by our company and VD4, VB2 AND 3AH manufactured by other companies around the world can be matched with the switchgear.

Get Quote

Product Introduction

SUMMARY



KYN61-40.5 Series switchgear panel is a MV air-insulated switchgear (AIS) for primary distribution, with vacuum circuit-breaker has been designed for the various operating requirements in public and industrial medium-voltage distribution systems. This panel applies to 27~40.5kv 3 phase AC 50Hz / 60Hz network for receiving and distributing power energy and also for control,monitor and protection. It can be arranged for single bus, single-bus sectionalizing system. It accords to IEC62271-200 <>, IEC694<>, GB3906<<3~35KV AC Metal Enclosed Switchgear>>, DL404<>, DIN.VDE0670<> and so on. It has perfect and reliable prevention function against false-operation.





OPERATING CONDITIONS



Normal operating conditions, according to the IEC International Standards listed below, for indoor switchgear.



Ambient air temperature

• Less than or equal to 40℃

• Less than or equal to 35℃ on average over 24 hours

• Greater than or equal to -5℃ ( -25℃ on request)



Altitude

• Less than or equal to 1000 m;

• Above 1000 m, a derating coefficient is applied (please consult us)



Atmosphere

• No dust, smoke, or corrosive, or inflammable gas and vapor, or salt

• Earthquake intensity: Magnitude 8



Humidity

• Average relative humidity over a 24 hour period ≤ 95%

• Average relative humidity over a 1 month period ≤ 90%

• Average vapor pressure over a 24 hour period ≤ 2.2 kPa

• Average vapor pressure over a 1 month period ≤ 1.8 kPa

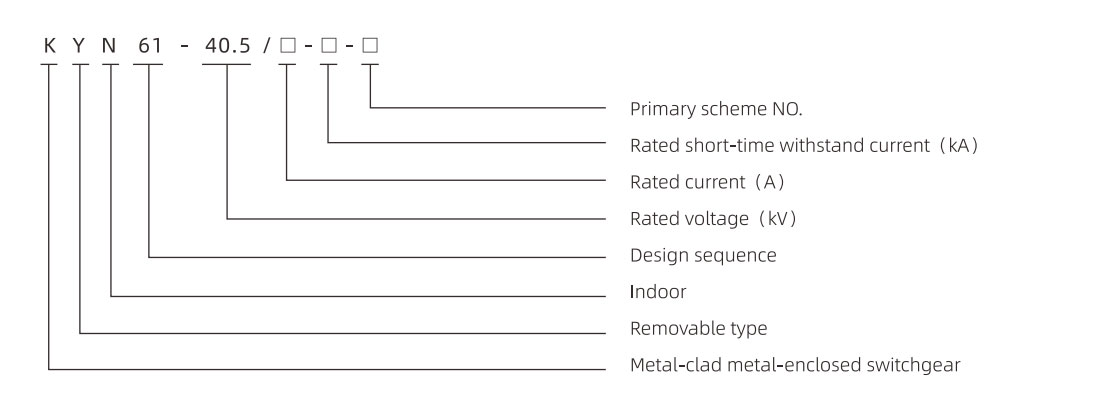

MODEL







TECHNICAL CHARACTERISTICS



Item

Unit

Data

Rated voltage

KV

27, 33, 36, 38, 40.5

Rated insulation

level

1min.P.F. withstand voltage(phases to ground/gaps)

KV

85/95

Lightning impulse withstand voltage(phases to ground/gaps)

KV

185/215

Rated frequency

Hz

50/60

Rated current

A

630, 1250, 1600, 2000, 2500, 3150

Rated short-time withstand current(4s)

KA

16, 20, 25, 31.5, 40, 50

Rated peak withstand current※

KA

40, 50, 63, 80, 100, 125

Protection class



Enclosure: IP4X, IP2X (VCB Door opened)

Outline dimension (width×depth×height)

mm

1400 (1200) × 2800 (2600) × 260 (2400)

weight

kg

1300-1600

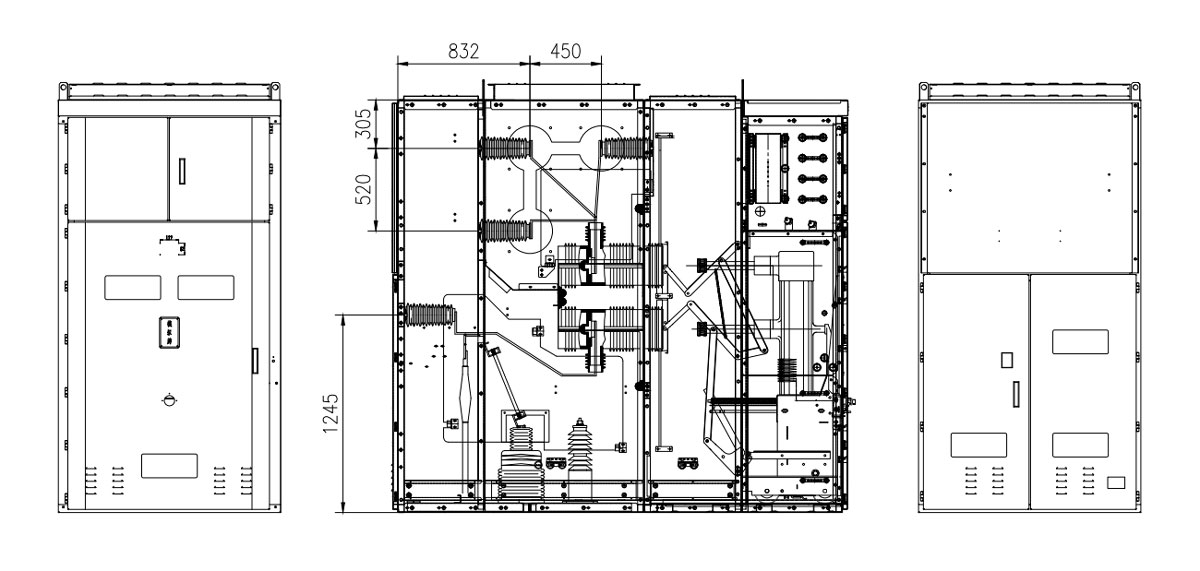

OUTLINE AND INSTALLATION DIMENSION
