Core Differences Between Dry-type and Oil-immersed Transformers: Selection Guide

Power transformers are critical equipment for power transmission, industrial operations, commercial buildings, and renewable energy infrastructure worldwide. Dry-type and oil-immersed transformers are the two most widely used categories, with fundamental differences in insulation and cooling media that drive gaps in safety, application, cost, and performance. This guide provides a concise, professional reference for global engineers, project owners, and integrators to make informed selection decisions.

1. Fundamental Difference

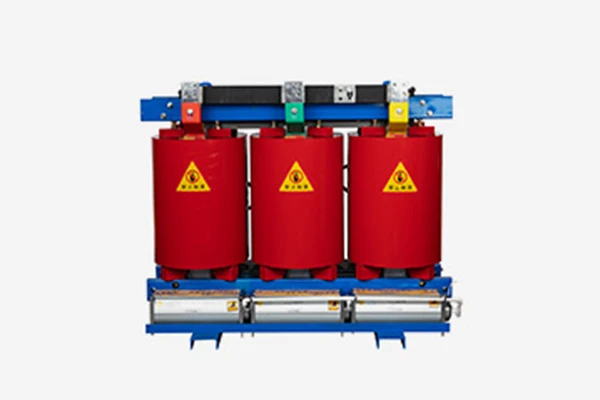

Dry-type Transformer: Uses epoxy resin as the core insulation material (vacuum cast), with air as the cooling medium for 100% oil-free operation, available in air natural (AN) and air forced (AF) cooling modes.

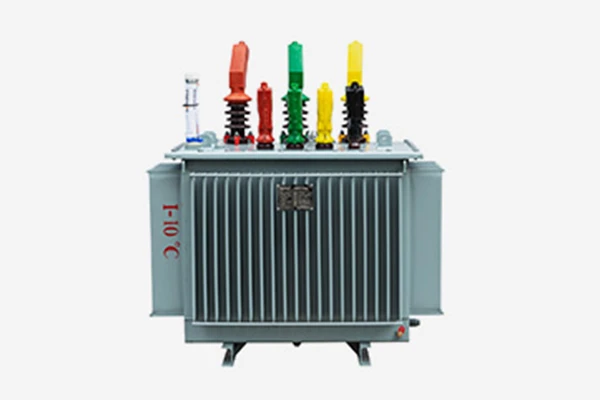

Oil-immersed Transformer: Uses insulating oil as the dual-function medium for both core insulation and heat dissipation, removing operational heat through oil convection circulation.

2. Safety and Environmental Compliance

Fire Safety

Dry-type Transformer: Epoxy resin meets F/H-class flame retardant standards. No flammable media, no explosion or fire spread risk, with excellent smoke suppression performance, fully complying with the strictest fire requirements for densely populated areas.
Oil-immersed Transformer: Insulating oil is flammable. Leakage or equipment failure can easily cause fire or explosion, requiring complete fire prevention, explosion protection, and isolation facilities.

Environmental Compliance

Dry-type Transformer: No oil, no leakage risk, zero pollutant emissions, and easy recycling of scrapped materials, fully meeting stringent global environmental regulations and green building requirements.
Oil-immersed Transformer: Risk of soil and groundwater pollution from oil leakage. Waste oil is hazardous waste requiring professional disposal, with higher environmental costs and compliance risks.

4. Installation and Space Requirements

Dry-type Transformer: Highly flexible installation. No need for a dedicated transformer room, oil storage tank, or fire dike. Can be installed in the same room with high and low voltage switchgears, greatly saving civil construction cost and space, and can be installed near the load to reduce line loss.
Oil-immersed Transformer: Requires a separate fire-isolated transformer room, with mandatory supporting facilities such as oil storage tanks and fire sand pools. High civil construction cost and strict site restrictions, not suitable for compact indoor spaces.

5. O&M and Full Life Cycle Cost

Daily Operation & Maintenance: Dry-type transformers only require regular dust cleaning, with extremely low maintenance cost and almost no downtime. Oil-immersed transformers need regular oil level/quality testing, seal and oil replacement, with cumbersome maintenance, high labor and material costs, and downtime that affects power supply continuity.
Initial Procurement Cost: For the same capacity and voltage level, the initial cost of a dry-type transformer is 20%-40% higher than an oil-immersed one, which has a lower entry cost.
Service Life: Both have a design life of 20-30 years under standard operation. The lifespan of oil-immersed transformers is highly dependent on maintenance levels, while dry-type transformers have more stable lifespan in suitable indoor environments.

6. Operational Performance

Overload Capacity: Oil-immersed transformers have higher heat dissipation efficiency, stronger short-term overload and long-term full-load operation capacity, suitable for heavy-duty industrial conditions with large load fluctuations. Dry-type transformers have weaker overload capacity, more suitable for scenarios with stable loads such as commercial and public buildings.
Environmental Adaptability: Standard outdoor oil-immersed transformers can reach IP65+ protection level, with strong resistance to humidity, dust, corrosion, and extreme temperatures. Standard dry-type transformers have IP20/IP23 protection, only suitable for clean indoor environments; upgrading the protection level will significantly increase costs and reduce heat dissipation performance.
Capacity and Voltage Limit: Oil-immersed transformers cover from distribution level to ultra-high voltage level, being the mainstream choice for power grids and large industrial projects. Dry-type transformers are mainly used in medium and low voltage scenarios of 35kV and below, 2500kVA and below.

7. Quick Selection Guide

Prioritize Dry-type Transformers if:
Indoor installation in densely populated areas with strict fire safety requirements
Located in urban core zones with stringent environmental regulations, no leakage risk allowed
High demand for power supply continuity, limited maintenance manpower
Compact site space, unable to build dedicated transformer rooms and fire protection facilities
Applications: data centers, hospitals, commercial complexes, rail transit, etc.

Prioritize Oil-immersed Transformers if:
Outdoor installation, need to adapt to harsh natural environments
Heavy-duty industrial scenarios, requiring long-term full-load operation and high overload capacity
Large capacity and high voltage requirements for power grids, renewable energy stations
Limited initial procurement budget, with a professional maintenance team
Sufficient site space to build compliant fire isolation and oil storage facilities
