KYN28A-24 Series switchgear panel is a MV air-insulated switchgear (AIS) for primary distribution, with vacuum circuit-breaker has been designed for the various operating requirements in public and industrial medium-voltage distribution systems.

Feature

Reliable "Anti-5" Mechanical Latch, Convenient and Safe Maintenance

Provides Middle Rolling and Floor Roiling Two Different Withdrawble Types, Can Meet All Our Customers' Technical Requirements and Operating Features

Both Vcb of Zn85-40.5/Vs1-40.5 Developed by Our Company and Vd4, Vb2 and 3ah Manufactured by Other Companies Around The World Can be Matched with The Switchgear

Get Quote

Product Introduction

SUMMARY



KYN28A-24 Series switchgear panel is a MV air-insulated switchgear (AIS) for primary distribution, with vacuum circuit-breaker has been designed for the various operating requirements in public and industrial medium-voltage distribution systems. This panel applies to 13.8~24kv 3 phase AC 50Hz / 60Hz network for receiving and distributing power energy and also for control,monitor and protection. It can be arranged for single bus, single-bus sectionalizing system. It accords to IEC62271-200 <>, IEC694<>, GB3906<<3~35KV AC Metal Enclosed Switchgear>>, DL404<>, DIN.VDE0670<> and so on. It has perfect and reliable prevention function against false-operation.





OPERATING CONDITIONS



Normal operating conditions, according to the IEC International Standards listed below, for indoor switchgear.



Ambient air temperature

• Less than or equal to 40℃

• Less than or equal to 35℃ on average over 24 hours

• Greater than or equal to -5℃ (-25℃ on request)



Altitude

• Less than or equal to 1000 m;

• Above 1000 m, a derating coefficient is applied (please consult us)



Atmosphere

• No dust, smoke, or corrosive, or inflammable gas and vapor, or salt

• Earthquake intensity: Magnitude 8



Humidity

• Average relative humidity over a 24 hour period ≤ 95%

• Average relative humidity over a 1 month period ≤ 90%

• Average vapor pressure over a 24 hour period ≤ 2.2 kPa

• Average vapor pressure over a 1 month period ≤ 1.8 kPa



Storage conditions

In order to retain all of the functional unit’s qualities when stored for prolonged periods, we recommend that the equipment is stored in its original packaging, in dry conditions, and sheltered from the sun and rain at a temperature ranging from - 25°C up to + 55°C.

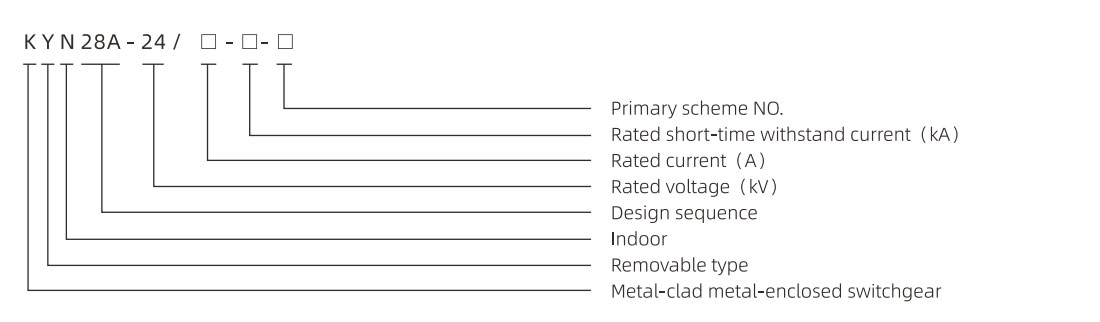

MODEL







TECHNICAL CHARACTERISTICS



Item Unit Data
Rated voltage KV 13.8, 15, 17.5, 20, 22, 24
Rated insulation level 1min.P.F. withstand voltage (phases to ground/gaps) KV 50/60
Lightning impulse withstand voltage (phases to ground/gaps) KV 125/145
Rated frequency Hz 50/60
Rated current A 630, 1250, 1600, 2000, 2500, 3150
Rated short-time withstand current (4s) KA 16, 20, 25, 31.5, 40, 50
Rated peak withstand current※ KA 40, 50, 63, 80, 100, 125
Protection class   Enclosure: lP4X ,IP2X (VCB Door opened)
Outline dimension (width×depth×height) mm 1000(800)×1800×2400
Weight kg 840-1500

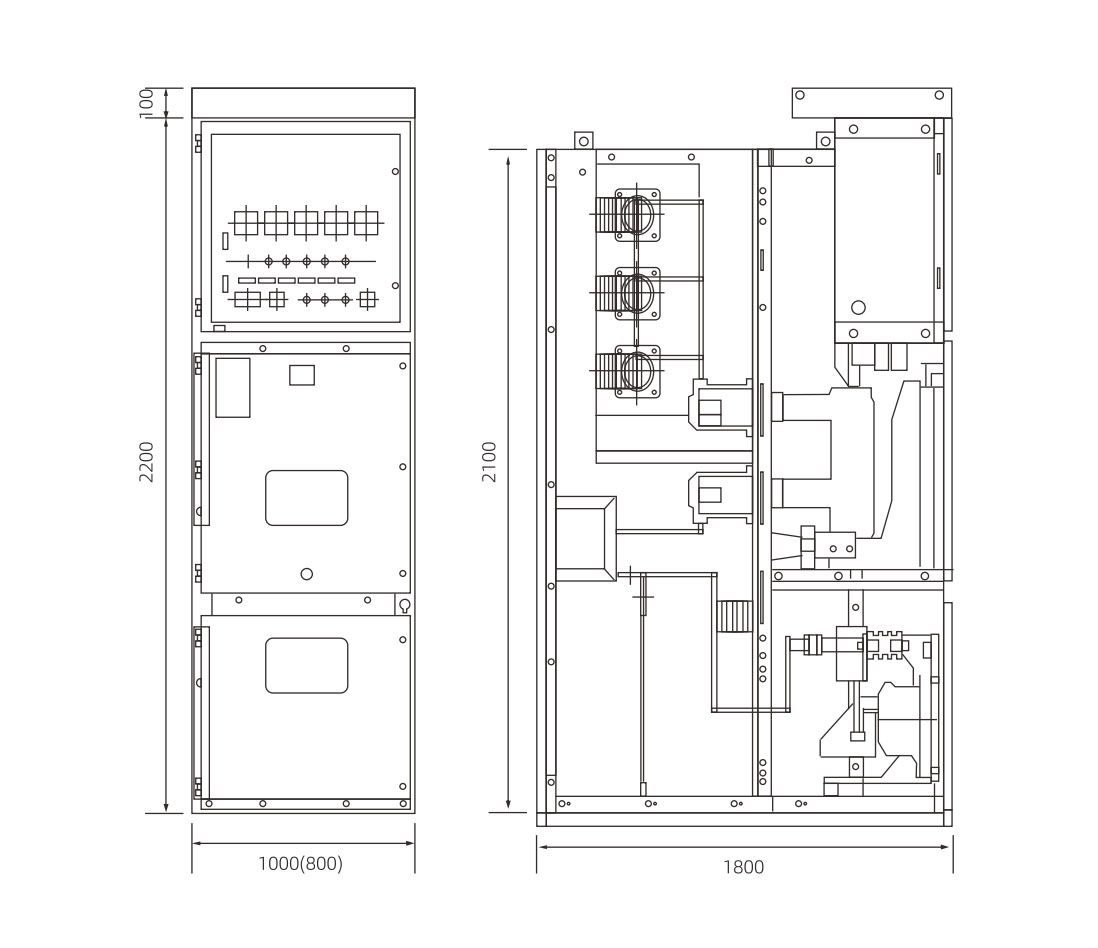

CONSTRUCTION
