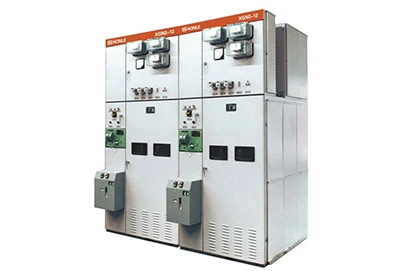

How Do You Prevent Oil Leakage and Contamination in Switchgear?
Site EditorOil leakage and contamination rarely announce themselves. A small drip, a dusty busbar, or a bit of condensation can sit unnoticed until insulation breaks down or an arc event shuts down the line. For plant managers and EPC teams, the goal is not just to react faster. It is to design and maintain the equipment so these problems have fewer places to start.
Why Oil Leakage and Contamination Matter
In high voltage switchgear, oil can come from older circuit breakers, current transformers, or lubricated mechanisms. Once it reaches insulation surfaces, it attracts dust and moisture. That combination can cause tracking, corrosion, and partial discharge. In low voltage switchgear, the risk is often grease, dust, humidity, and poor cable sealing. The result is the same: higher maintenance costs and lower confidence in the power distribution system.
Common Sources of Oil Leakage and Contamination
Seals and gaskets age. Mechanical parts wear. Technicians sometimes over-grease a mechanism because they believe more lubrication is safer. Condensation forms when warm, humid air meets cooler metal. Dust enters through cable entries, vents, or damaged gaskets. In coastal or industrial areas, salt and corrosive gases make every one of these issues worse. None of these sources is unusual. The problem is that they are often ignored until they affect operation.
Design Choices That Reduce Risk
The most effective prevention starts before installation. A well-designed enclosure, proper IP rating, and sealed cable entry points keep contaminants out. Drainage paths and breathable membranes allow pressure equalization without letting water in. Heaters or anti-condensation systems help in humid rooms. Stainless steel hardware and corrosion-resistant coatings matter in coastal plants and chemical facilities.
Oil-Free and Sealed Designs
Where possible, choose oil-free switchgear for new projects. Vacuum interrupters, sealed gas compartments, and maintenance-free operating mechanisms remove the oil leak path entirely. If oil-filled equipment is already in service, use oil sight glasses, pressure gauges, and absorbent pads under joints. Check seals during every planned outage rather than waiting for a visible leak.
Environmental Protection Features
Look for enclosures that match the room environment. In dusty areas, higher IP ratings and filters help. In humid areas, space heaters and ventilation with humidity control are important. In areas with rodents or insects, seal openings and use metal mesh. These details are not expensive when specified at the factory. They are much more expensive after a failure.
Installation Practices That Prevent Problems
Good installation protects the equipment from day one. Cable entries should be sealed with proper glands and fire-stop material. The floor and cable trench should be dry and clean. The room should have adequate ventilation, and if humidity is high, dehumidifiers or air conditioning should run before energization. Torque values must be followed. Loose connections create heat, which ages insulation and seals faster.
Room Conditions and Cable Sealing
Water often enters through the cable trench, not the enclosure. Seal the trench, slope it away from the room, and check for standing water after heavy rain. If cables come from outside, use a sealed transition box. Also check that the room is pest-controlled. Rodents can chew through insulation and leave debris that bridges clearances.
Maintenance Routines That Keep Equipment Reliable
Prevention is a routine, not a one-time task. A simple schedule can catch most problems early. Thermal imaging finds hot joints. Partial discharge testing finds insulation issues before failure. Visual inspection finds dust, rust, moisture, and oil stains. Cleaning should be done with approved methods and materials. Never use solvents that damage insulation or coatings.
Inspection and Cleaning Schedule
For most industrial sites, a quarterly visual inspection and an annual detailed inspection work well. In harsh environments, shorten the interval. Check gaskets, breathers, desiccant, heaters, and filters. Replace worn seals before they fail. Clean ventilation paths. Record every finding so you can see trends. A small oil stain that returns after cleaning is a warning, not a housekeeping issue.
Testing and Monitoring
Use monitoring where downtime is costly. Temperature sensors on busbars, partial discharge monitors, and humidity sensors can provide early warning. For oil-filled units, sample oil according to the manufacturer’s schedule. For withdrawable switchgear, inspect contacts and shutters during withdrawal. Clean and lubricate only with the approved lubricant, and use the correct amount.
Quick Reference: Prevention Checklist
| Prevention Area | Recommended Practice | Why It Matters |
|---|---|---|
| Seals and gaskets | Replace at first sign of hardening or leakage | Stops oil, dust, and moisture ingress |
| Cable entries | Use sealed glands and fire-stop material | Blocks water, dust, and pests |
| Room humidity | Use heaters, dehumidifiers, or controlled ventilation | Prevents condensation on live parts |
| Cleaning | Use approved cleaners only | Protects insulation and coatings |
| Monitoring | Thermal imaging, PD testing, humidity sensors | Finds issues before failure |
What to Look for in a Supplier
A supplier should do more than ship a panel. Ask for test reports, material certificates, and a clear maintenance manual. Ask how cable entries, ventilation, and anti-condensation features are designed. Ask what spare parts are available and how quickly they can be shipped. A supplier that understands contamination control will give specific answers, not general promises.
Documentation, Training, and Spare Parts
Good documentation makes maintenance easier. Training helps your team recognize early warning signs. Spare parts availability reduces downtime when a gasket, heater, or contact needs replacement. If the supplier offers remote support, even better. A quick video call can often solve a problem before it becomes an outage.
Summary
Oil leakage and contamination are not inevitable. They are the result of design choices, installation quality, and maintenance habits. With sealed enclosures, oil-free options, proper cable sealing, humidity control, and a disciplined inspection routine, most problems can be prevented or caught early.
What to take away
Choose oil-free or sealed designs where possible. Protect cable entries and control room humidity. Inspect for dust, moisture, and oil stains on a fixed schedule. Use thermal imaging and partial discharge testing. Work with a supplier that provides clear documentation, training, and spare parts.
