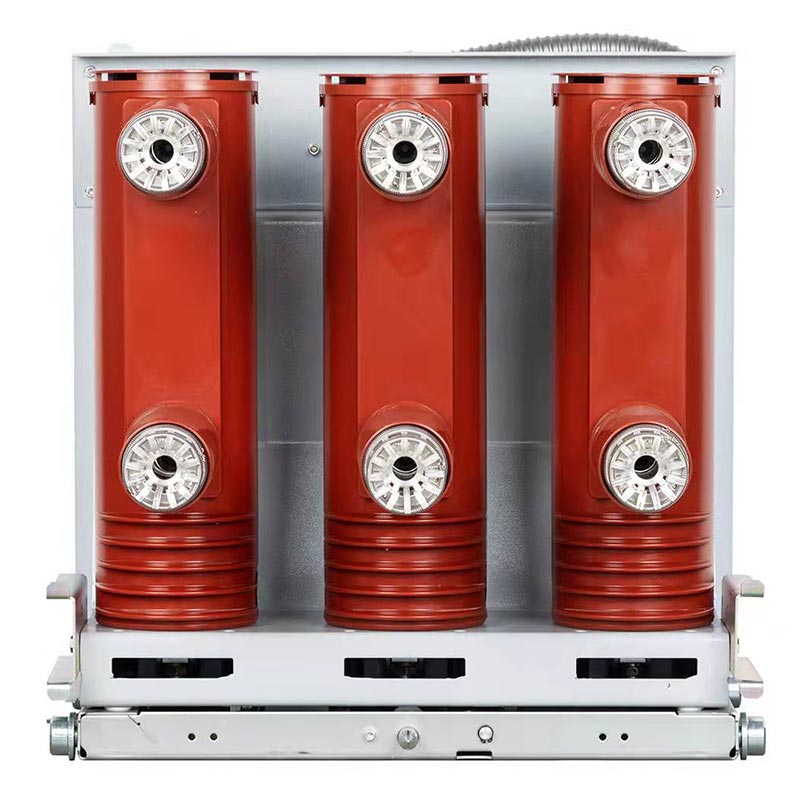

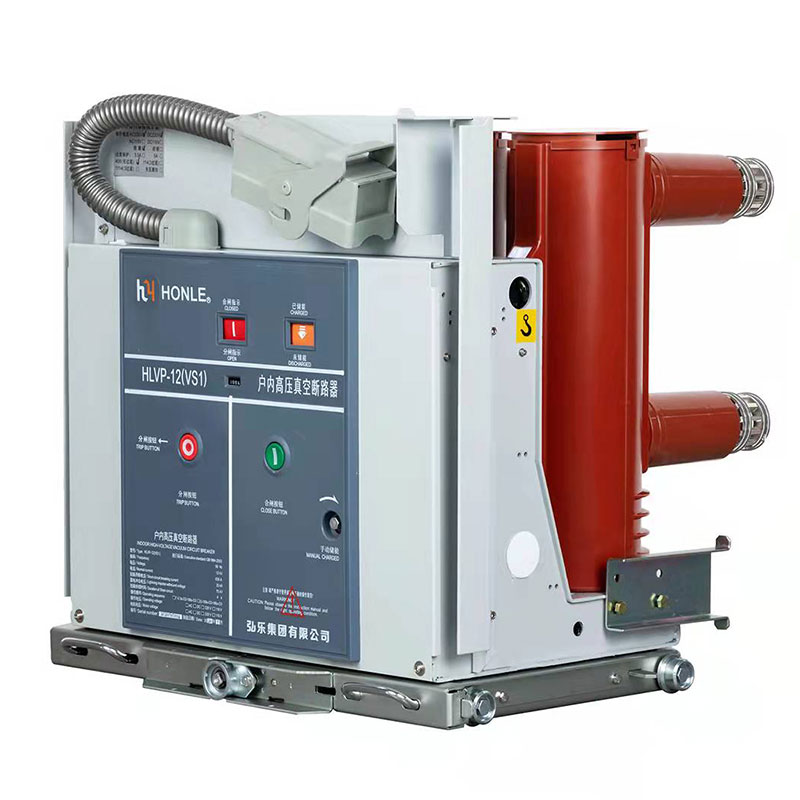

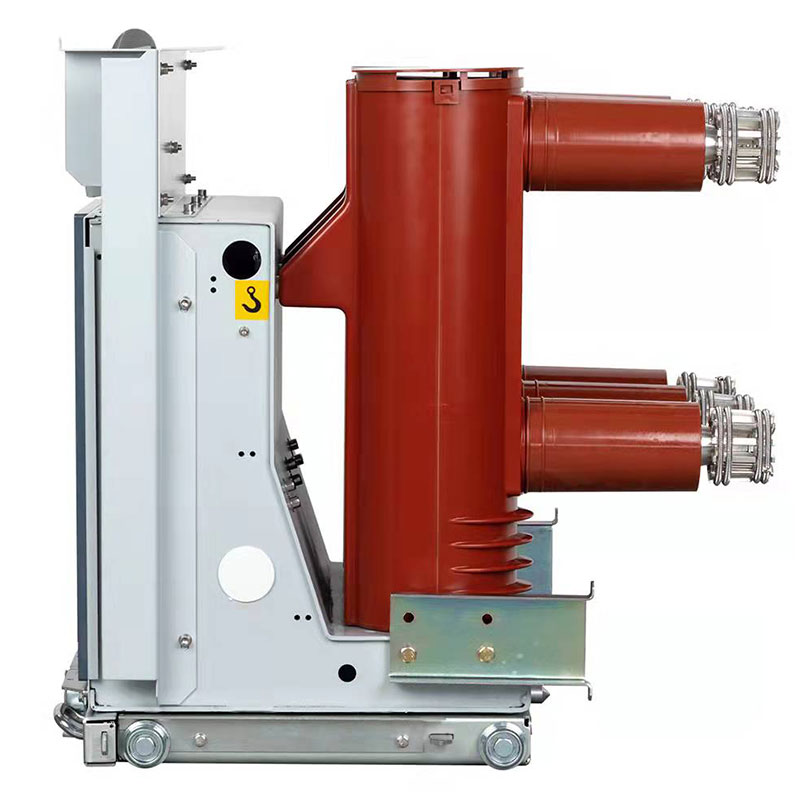

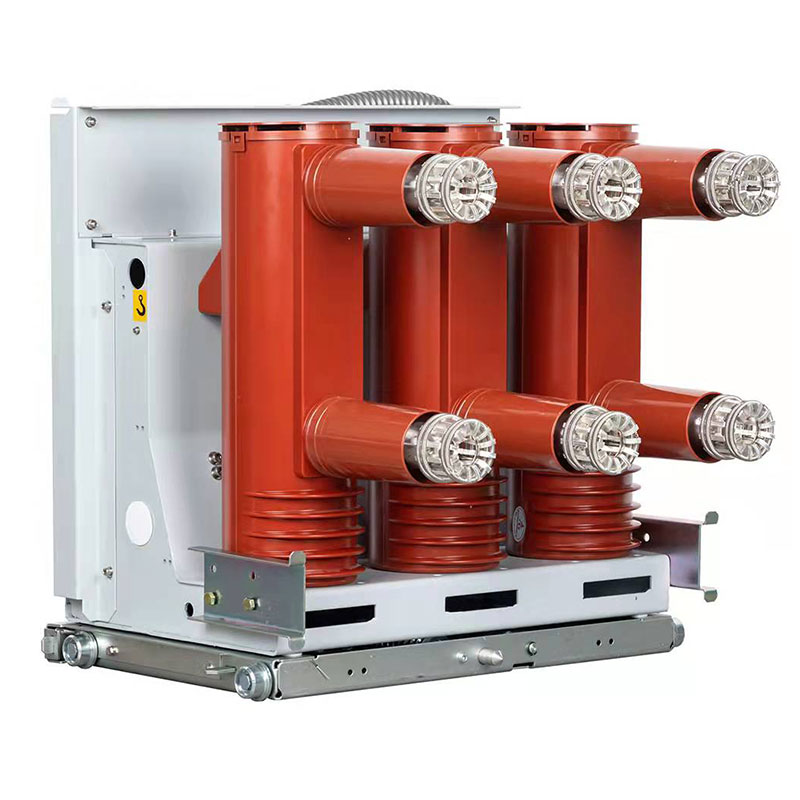

HLVP-12 (VS1) Indoor High Voltage Vacuum Circuit Breaker Withdrawer
HLVP-12 (VS1) Indoor High Voltage Vacuum Circuit Breaker Withdrawer
HLVP-12 (VS1) Indoor High Voltage Vacuum Circuit Breaker Withdrawer
HLVP-12 (VS1) Indoor High Voltage Vacuum Circuit Breaker Withdrawer
HLVP-12 (VS1) Indoor High Voltage Vacuum Circuit Breaker Withdrawer
HLVP-12 (VS1) Indoor High Voltage Vacuum Circuit Breaker Withdrawer

HLVP-12 (VS1) Indoor High Voltage Vacuum Circuit Breaker Withdrawer

HLVP-12 open type vacuum circuit breaker is an indoor high-voltage switchgear, which is suitable for use as a protection and control appliance in a three-phase power system with a rated voltage of 12 KV and a frequency of 50Hz.

Feature

Suitable for Use as A Protection And Control Appliance in a Three-Phase Power System with a Rated Voltage of 12 Kv and a Frequency of 50hz.

Especially Suitable for Places That Need Frequent Operation Under The Rated Working Current or Multiple Short-Circuit Current Interruptions.

Get Quote

Product Introduction

Product overview



HLVP-12 open type vacuum circuit breaker is an indoor high-voltage switchgear, which is suitable for use as a protection and control appliance in a three-phase power system with a rated voltage of 12 KV and a frequency of 50Hz. Due to the special advantages of the vacuum circuit breaker, it is especially suitable for places that need frequent operation under the rated working current or multiple short-circuit current interruptions.





Performance benefits



This type of product is a modular operating mechanism. The main insulation is solid insulation, and the vacuum arc extinguishing chamber is integrally cast in the epoxy resin insulation room. The adoption of this structure greatly improves the insulation performance of the product, and can meet the requirements of environmental conditions such as humidity and high altitude.





Main Technical parameters



NO

Item

Unit

Technical Parameters

1

Rated voltage

KV

12

2

Rated short-duration power frequency withstand voltage

KV

42/48(Interphase, ground/fracture)

3

Rated lightning impulse withstand voltage

KV

42/48(Interphase, ground/fracture)

4

Rated frequency

Hz

50

5

Rated current

A

630 1250

630 1250 1600
2000 2500 3150

630 1250 1600
2000 2500 3150

6

Rated short-circuit breaking current

KA

20/25

31.5

40

7

Rated short-time withstand current

KA

20/25

31.5

40

8

Rated short circuit duration

S

4

9

Rated peak withstand current

KA

50/63

80

100

10

Rated short circuit closing current

KA

50/63

80

100

11

Secondary circuit power frequency withstand voltage (1min)

V

2000

12

Rated single / back to back capacitor group breaking current

A

630/400(40kA:800/400)

13

Rated capacitor bank closing current

KA

12.5 (frequency is not greater than)

14

Mechanical life

TIMES

20000

15

Rated current breaking times (electrical life)

TIMES

20000

16

Rated short circuit current breaking times

TIMES

50(40KA≤30)

17

Dynamic and static contacts allow wear cumulative thickness

MM

3

18

Energy storage time

S

≤10

19

Contact opening distance

MM

11±1

20

Overtravel



3.5±0.5

21

Contact closing bounce time

MS

≤2(40KA≤3)

22

Three-phase split/closed period

MS

≤2

23

Average opening speed (contacts are separated by -8mm)

M/S

1.2±0.2

24

Main conductive loop resistance

μΩ

≤50(630A)≤45(1250A)

≤40 (1600,2000A)≤35 (2500A or more)

25

Rated operation sequence



0-0.3s-Co-180s-Co

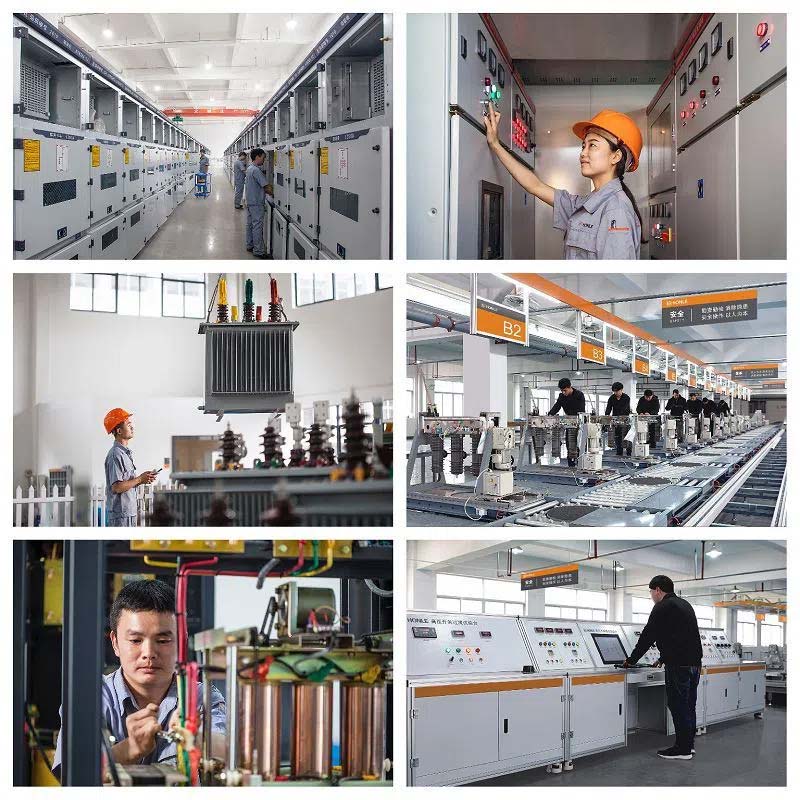

Our factory
