YBP(M)□-12/40.5 Prefabricated Substation
YBP(M)□-12/40.5 Prefabricated Substation

YBP(M)□-12/40.5 Prefabricated Substation

YBP(M)-12 prefabricated substation is a complete intelligent power supply and distribution device optimized with new environmentally friendly materials, new technology, advanced high and low voltage technology, it has multi-function and wild usage with reliable operation and good appearance.

Feature

Complete Intelligent Power Supply and Distribution Device Optimized with New Environmentally Friendly Materials, New Technology, Advanced High and Low Voltage Technology, It has Multi-Function and Wild Usage with Reliable Operation and Good Appearance

Easy Installation, Less Land Requirement, Less Maintenance, Less Investment and Long Life

Used as Power Distribution Equipment for Urban Buildings, Residential Areas, Municipal Facilities, Mines, Roads, Gardens, Piers, Oil Fields and Trmporaty Power Supply and Other Departments

Get Quote

Product Introduction

RRODUCT OVERVIEW



YBP(M)-12 prefabricated substation is a complete intelligent power supply and distribution device optimized with new environmentally friendly materials, new technology, advanced high and low voltage technology, it has multi-function and wild usage with reliable operation and good appearance. It can combine with the surrounding environment to design a variety of different styles and shapes, It has featutes of easy installation, less land requirement, less maintenance, less investment and long life. lt can be used as power distribution equipment for urban buildings, residential areas, municipal facilities, mines, roads, gardens, piers, oil fields and trmporaty power supply and other departments.





SERVICE CONDITION



• Altitude:not exceed 1000m;

• Ambient temperature:-25+40; average temperature within 24h should not exceed -30

• Quakeproof level:horizontal acceleration not exceed 0.4m/s2, vertical acceleration not exceed 0.2m/s2; No severe vibration, shock or explosive danger in the installation site.





STRUCTURE



• According to whether it can be equipped with intelligent system,it can be divided into: lntelligent type; compact type.

• The cabinet body (shel) materials: metal shell; non-metallic shell.

• Non-metallic shell is precast synthesized by non-metallic fiberglass and special reinforced concrete, it has high mechanical strength and good impact resistance, it has low thermal conductivity, and it has fireproof and smoldering features, compared with metal shll, it has better corrosion resistance and extremely long life and other characteristics.





Matters need attention for hoisting transportation, operation and installation of cubicle substation:



• surrounding of the foundation of cubicle substation shall be embedded with grounding electrodse, transformer and lightning protector can share the grounding system, grounding resistance shall be ≤4Ω

• Use special hoisting tool for lifting the cubiclesubstation,must use the marked parts on substation forhoisting

• Junction part of the substation bottom and foundation should be sealed with cement to prevent sater from entering into the cable chamber

• After the cable is set in the cuale sleeve, its gap must be sealed to prevent from pests or water.





BASIC TECHNICAL PARAMETERS



Rated voltage Auxiliary circuit Rated capacity of transformer Rated current
HV side LV side DC   (kVA) HV LV
12kV
40.5kV
0.4kV 110V
220V
380V
24V 100, 125, 160, 200, 250, 315, 400, 500,
630, 800, 1000, 1250, 1600
400A
630A
100A~2500A



Rated frequency Rated short-time withstand current Rated peak withstand current
  HV switchgeat LV switchgeat
50Hz
60Hz
12/40.5kV
16kA-2s(4s)
20kA-2s(4s)
250-315kVA 15kA 400-800kVA 30kA
1000kVA above should beconducted
according to actual short-citcuit current
Note: up to and including 200kVA can
be excused from tedt
12kV
40kV
50kA



Insulation level, withstand voltage of high-voltage equipment



Rated voltage Lightning impulse withstand voltage 1min power frequency withstand voltage
  To-ground and phase-to-phase Isolation distance To-ground and phase-to-phase Isolation distance
12/40.5 75/185 85/215 42/95 85/118

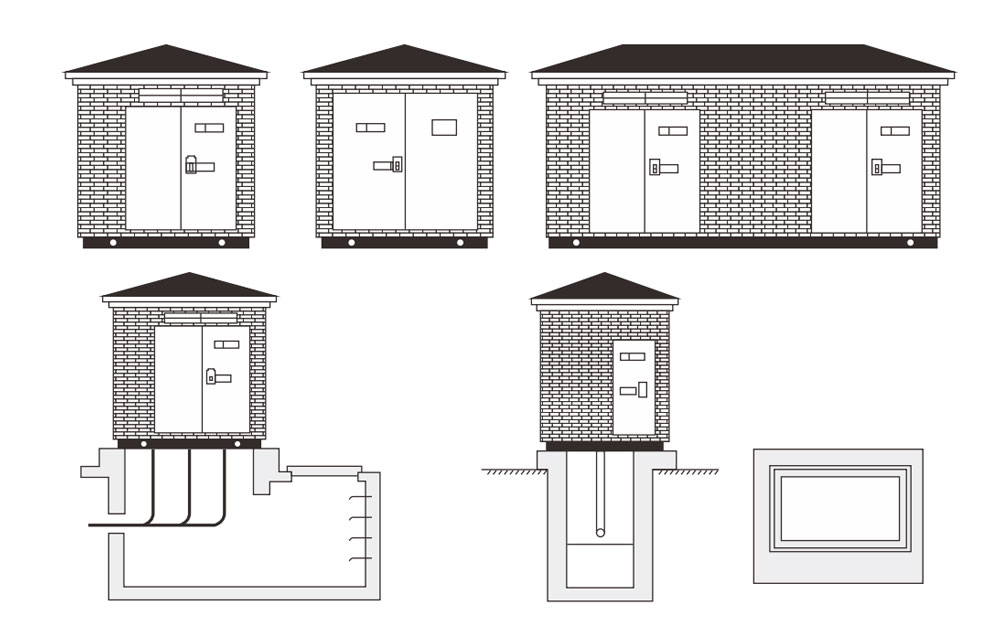

Schematic diagram and structural style of cabinet body of commonly used cubiclesubstation

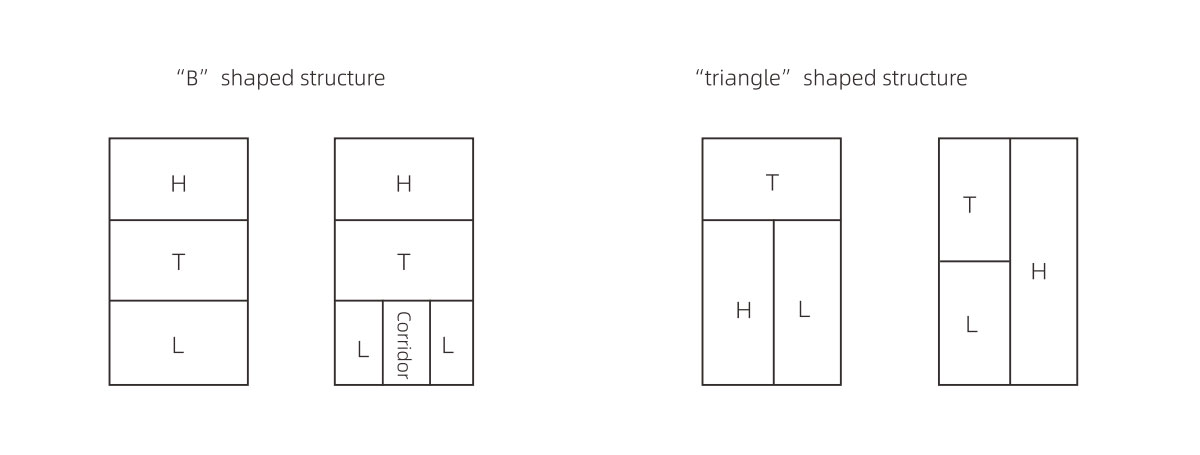

"B" shaped and "triangle" shaped structure



(H-HV chamber, T-transformerchamber, L-LV chamber)
