The High voltage Reactive Power Compensation Device is suitable for 3 6kV~ 40.5kV frequency 50H2 AC power system. It mainly adjusts the bus voltage and reactive power of power system, improves power factor, improves voltage quality and reduces power grid loss.

Feature

Mainly Adjusts the Bus Voltage and Reactive Power of Power System, Improves Power Factor, Improves Voltage Quality and Reduces Power Grid Loss

Get Quote

Product Introduction

SUMMARY



The High voltage Reactive Power Compensation Device is suitable for 3 6kV~ 40.5kV frequency 50H2 AC power system. It mainly adjusts the bus voltage and reactive power of power system, improves power factor, improves voltage quality and reduces power grid loss.





OPERATING CONDITIONS



1.Ambient Temperature: No more than +40C and no less than - 15"C.Average temperature is no more than +35C within 24 hours.

2.Altitude: No more than 1000m.

3.Relative Humidity: the average daily value is no more than 95%,the average monthly value is no more than 90%,

4. Earthquake Intensity: No more than 8 degrees.

5.Vapor pressure: average dally value is no more than 2 2kPa. average monthly value is no more than 1.8kPa.

6.Installation locations without fire, explosion danger, serious pollution, chemical corrosion and violent vibration.





FEATURE



1. The capacitor bank adopts grouped switching,which has high utilzation of capacitors,

2. It is optional for manual switching,or automatically switching with reactive power controller.

3. The switching device has a pertect five-preventions', with simple and clear operation procedures.

4. It can be connected through the communication interface to the integrated automation system to meet the operation and management requirements of the unattended and centralized control of the substation,

5. It has over temperature and over voltage protection, with internal and external fault locking function.





TECHNICAL CHARACTERISTICS



Content TBBF6-□/□-AK(W) TBBF10-□/□-AK(W) TBBF35-□/□-AK(W)
Rated Voltage 6kV 10kV 35kV
Rated Current Depends on the capacity
Rated Capacity 600-7200kvar
Rated Frequency 50/60Hz 50/60Hz 50/60Hz
Rated Snort-time Withstand Current(4s) 20 25 31.5 20 25 31.5 20 25 31.5
Rated Peak Withstand Current 50 63 80 50 63 80 50 63 80
Capacitance Deviation -5~+10%
Connection Mode Star or dual star
Frequency Withstand voltage in 1 min of Aux Control Loop 2000V
Degrees of Protection IP20 IP20 IP20

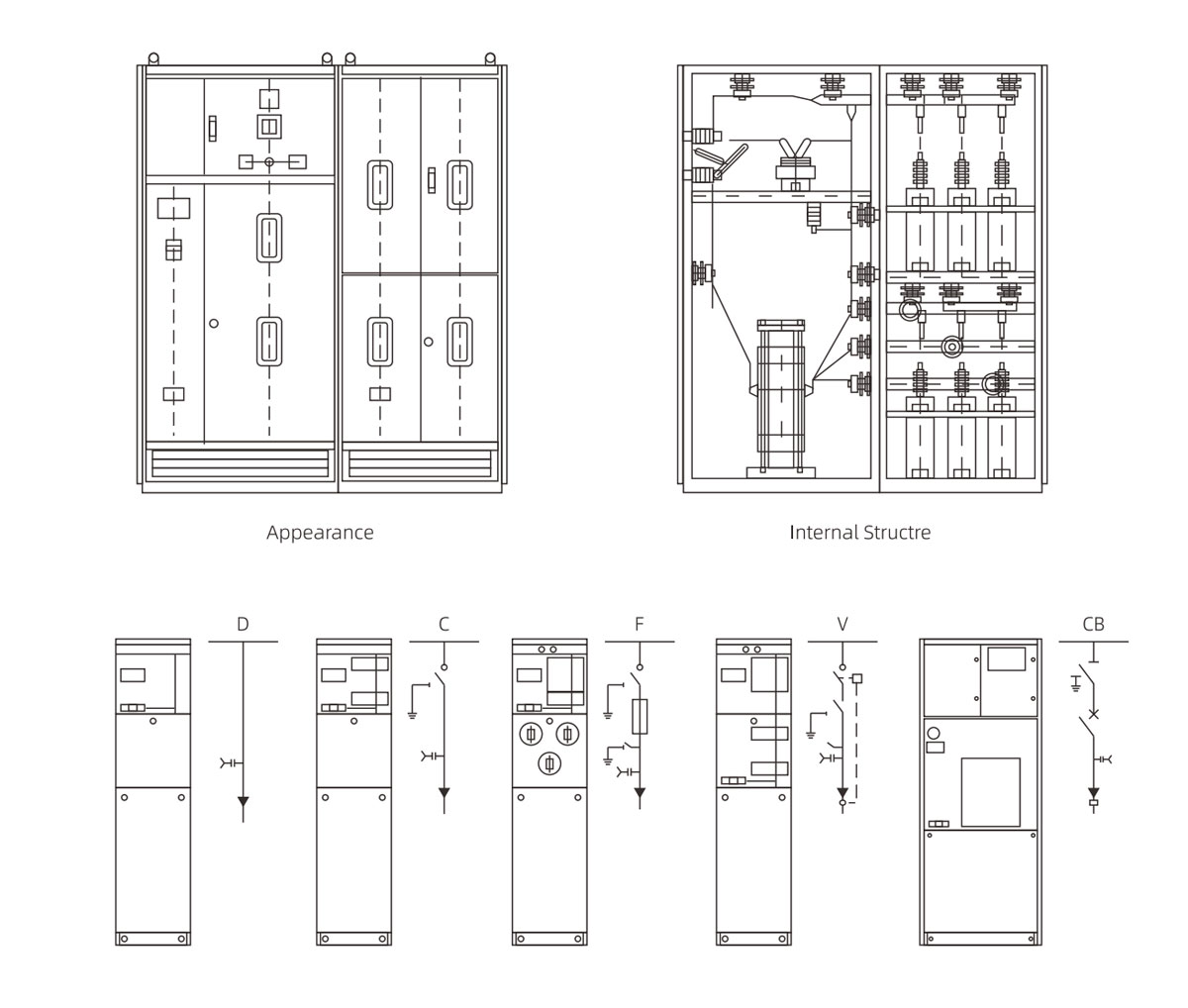

OUTLINE DRAWING
