KYN28 Indoor High Voltage Withdrawable Switchgear

KYN28 indoor metal-clad withdrawable switchgear(hereafter short as switchgear) is a complete power distribution device for 3.6~24KV, 3 phase AC 50Hz, single bus sectionalized system.

Feature

Complete Power Distribution Device for 3.6~24kv, 3 Phase Ac 50hz, Single Bus Sectionalized System

Main Used for Power Transmission of Middle/Small Generators in Power Plants, Power Receiving, Transmission for Substations in Power Distribution and Power System of Factories, Mines and Enterprises, and Starting of Large High-Voltage Motor, Etc, So As To Control, Protect and Monitor The System

Meets to Iec298, Gb3906-91

Truly A Power Distribution Deviece With Good Performance

Get Quote

Product Introduction

Product Description



KYN28 indoor metal-clad withdrawable switchgear(hereafter short as switchgear) is a complete power distribution device for 3.6~24KV, 3 phase AC 50Hz, single bus sectionalized system. It is main used for power transmission of middle/small generators in power plants, power receiving, transmission for substations in power distribution and power system of factories, mines and enterprises, and starting of large high-voltage motor, etc, so as to control, protect and monitor the system. The switchgear meets IEC298, GB3906-91. In addition to be used with domestic VS1 vacuum circuit breaker, it can be used with VD4 from ABB, 3AH5 from Siemens domestic ZN65A, and VB2 from GE, etc. It is truly a power distribution deviece with good performance.

In order to meet the requirement for wall mounting and front-end maintenance, the switchgear is equipped with a special current transformer, so that the operator can maintain and inspect it in front of the cubicle.





Technical Parameters



No

Name

Unit

Data

1

Rated voltage

kV

12

15

24

2

Insuation level

Lightning impulse withstand

voltage

kV

75/85

90/105

125/150

1min power frequency

withstand volatge

kV

42/48

48/55

55/65

3

Rated frequency

Hz

50/60

4

Rated current

A

630,1250,1600,2000,2500,3150,

4000

5

4s short time withstand current

kA

20、25、31、31.5、40、50

6

Rated peak withstand current

kA

50、63、80、100、125

7

Thickness





7.1

Base frame

mm

2.0

7.2

Side panels

mm

2.0

7.3

Top cover(with provisions of louvers for

heat dissipation)

mm

2.0

7.4

Doors

mm

2.0

8

Live cable indicators for incoming &

outgoing cables



Supply Live display

9

Material



Steel sheet coated with

aluminum-zinc alloy

10

Protection level



Enclosure IP4X,partition of

each compartment is IP2X

11

Standard



IEC62271-200

12

Color



RAL7032 / RAL7035

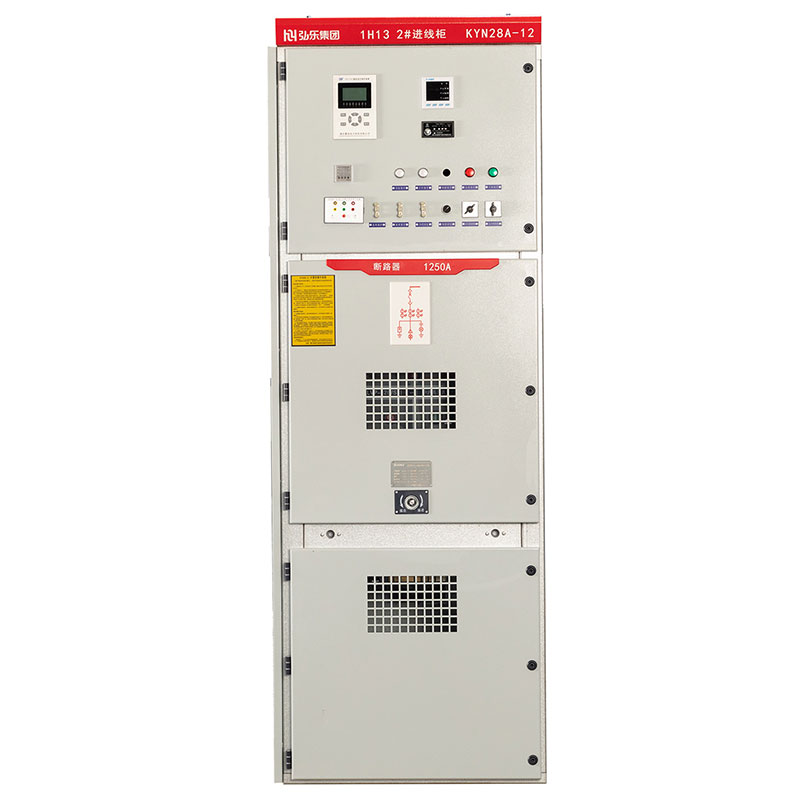

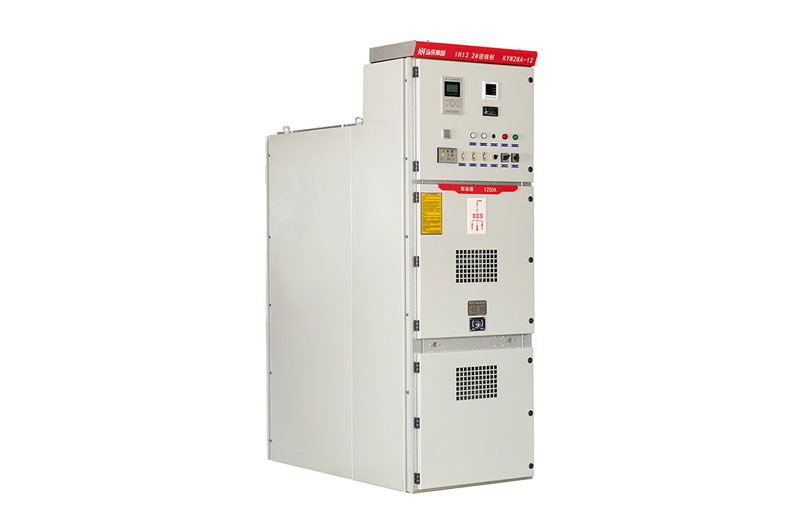

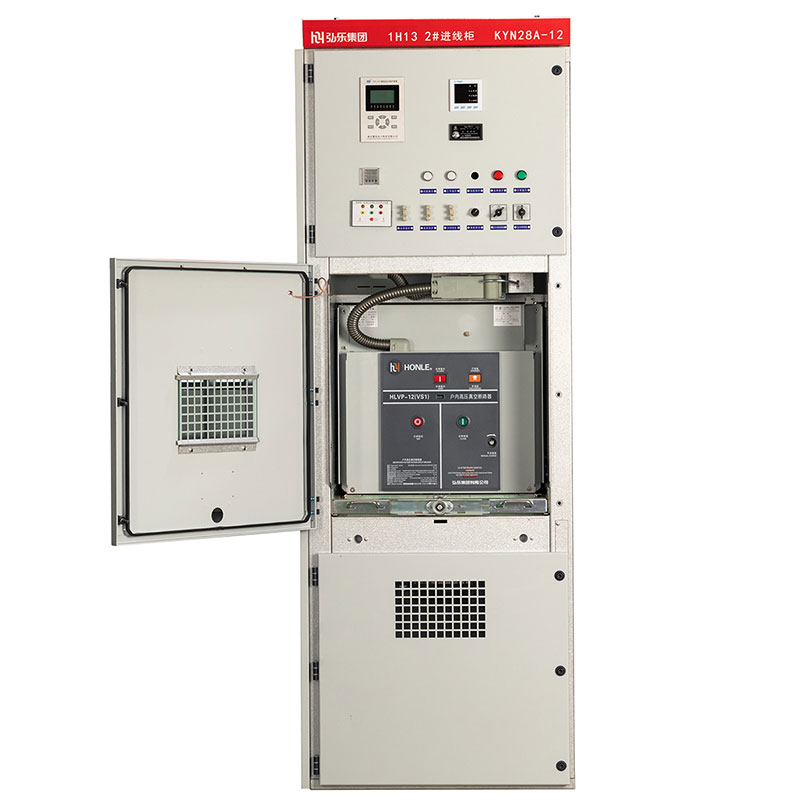

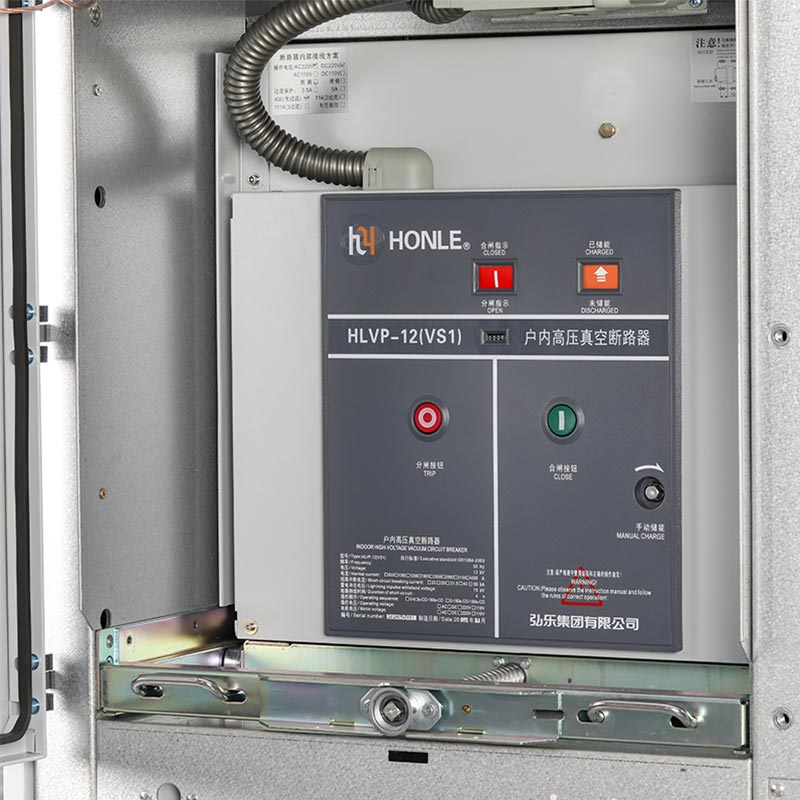

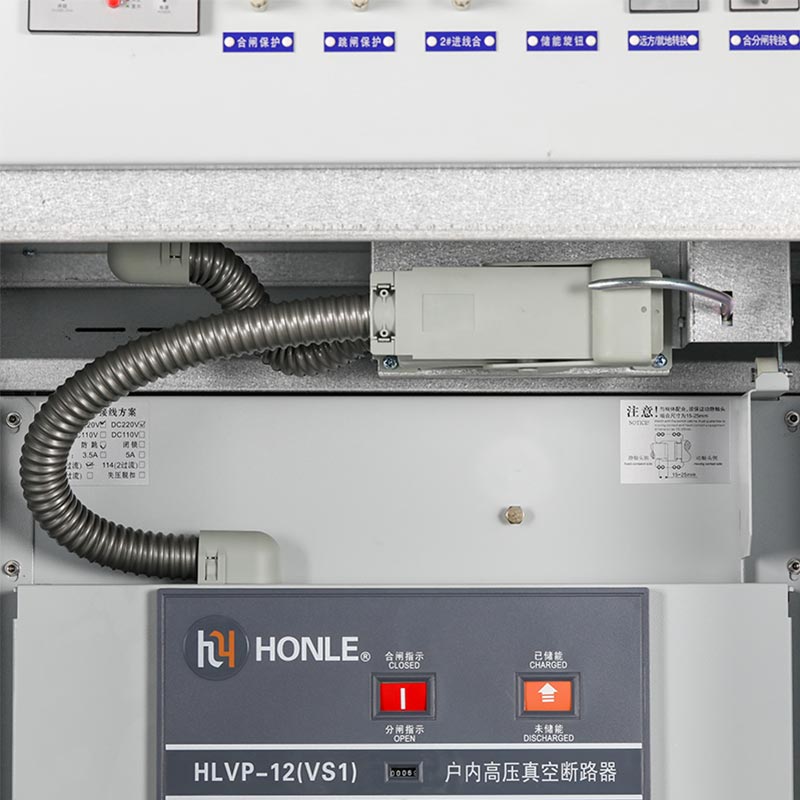

Product Photo







Service Conditions



1.Ambient temperature:-30℃ ~ +50℃;

2.Altitude: Not exceed 2500m above sea level;

3.Ambient humidity: Daily average RH ≤ 95%;

Monthly average RH ≤ 90%

Water vapor pressure:Daily average RH ≤ 2.2kPa;

Monthly average RH ≤ 1.8kPa;
