DFW-12 Cable Distribution Box
DFW-12 Cable Distribution Box

DFW-12 Cable Distribution Box

The cable distribution box is a excellent product to solve the problem of too massive brunches. It has the feature of fully insulated and fully sealing, which can decrease the fault ratio in the power supply line.

Feature

A Excellent Product to Solve The Problem of Too Massive Brunches

Fully Insulated and Fully Sealing, Which Can Decrease the Fault Ratio in the Power Supply Line

The Distribution is Simple, Convenience and Flexible

Can be Put Into Water and Underground which Suit to The Place of Business Center, Industry Garden, Cities And So On

Get Quote

Product Introduction

SUMMARY



The cable distribution box is a excellent product to solve the problem of too massive brunches. It has the feature of fully insulated and fully sealing, which can decrease the fault ratio in the power supply line.

The distribution is simple, convenience and flexible. In some situations, it can replace the ring main unit. It also can be put into water and underground which suit to the place of business center, industry garden, cities and so on.According to the structure and the kind of cable connector, it can be divided as: American cable distribution box, European cable distribution box and distribution box with switch.

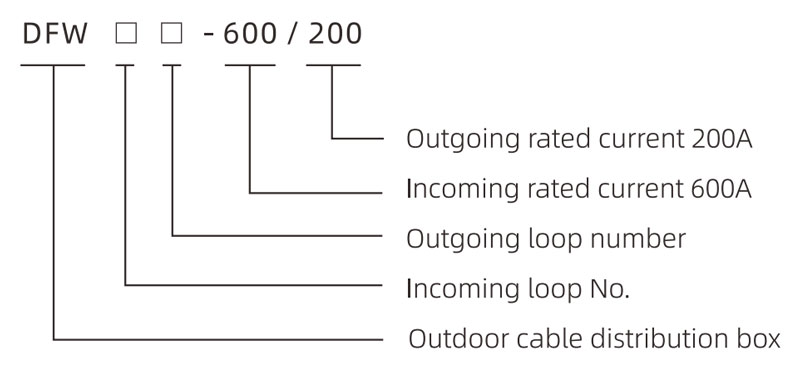

MODEL







PRODUCT FEATURE



1. Fully sealing structure.

2. without maintaining, against dust, flood and corrosion and so on, suit to the situation of outdoor, water and any other serious location.

3. The structure is flexible, and there are 8 branches can beused for various connecting.

4. Small volume,compact structure, simple installation and convenience operation.

5. The 200A branch cable connector can be used as a load switch, which has a load insert, so it has the feature of disconnect switch.

6. Can connect to the fault indicator for fault examining of cable.

7. There are various box's materials can be chosen: Common steel matches the military green, mirror surface stainless steel, stainless steel matches the military green and so on.





TECHNICAL SPECIFICATION



Technical specification 200A loop specification 600A loop specification
Rated voltage 12kV 12kV
Max.Voltage of phase to phase 14.4kV 14.4kV
Max.Voltage of phase to earth 8.3kV 8.3kV
1 min power-frequency withstand voltage 42kV 42kV
15 min DC withstand voltage 52kV 52kV
Lightning impulse withstand voltage 75kV 75kV
Mini corona starting voltage 11kV 11kV
Rated current 200A 600A
Rated thermal standing current 3.5kV/3s 20kV/2s
Rated dynamic standing current 10kA/0.2s 50kA/0.3s
Partial discharge ≤10pc/15kV ≤10pc/15kV
Loop resistance <40 μΩ <40 μΩ
Protection degree IP33 IP33

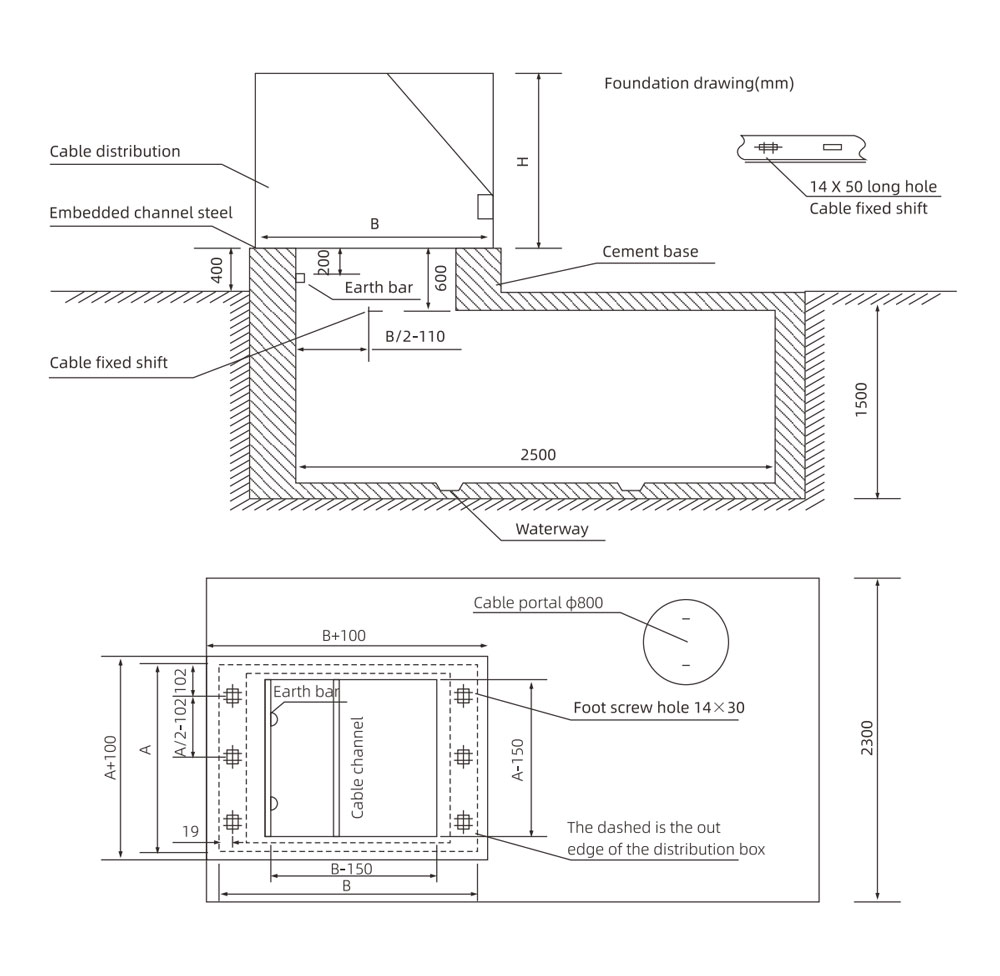

FOUNDATION



Model Length A (mm) Width B (mm) Height H (mm) Weight (kg)
DFW3-200 (200A three-way bus bar) 1219 381 762 75
DFW4-200 (200A four-way bus bar) 1524 381 762 89
DFW2-600 (600A two-way bus bar) 1219 559 762 90
DFW3-600 (600A three-way bus bar) 1219 559 762 94
DFW4-600 (600A four-way bus bar) 1676 559 762 116
