SBW Series Automatic Voltage Stabilizer

SBW series voltage stabilizer full auto compensated is designed for stabilizing AC voltage and made with Western Europe advanced technology and on the basis of our country national conditions.

Feature

Equipped with Bypass System

Compensated Voltage Technology is Adopted

Wide Input Voltage Range

Overvoltage Protection

Output Voltage Three-phase Auto-balance Function

Widely Ued in Electric Power Supply Systems

Get Quote

Product Introduction

Overview

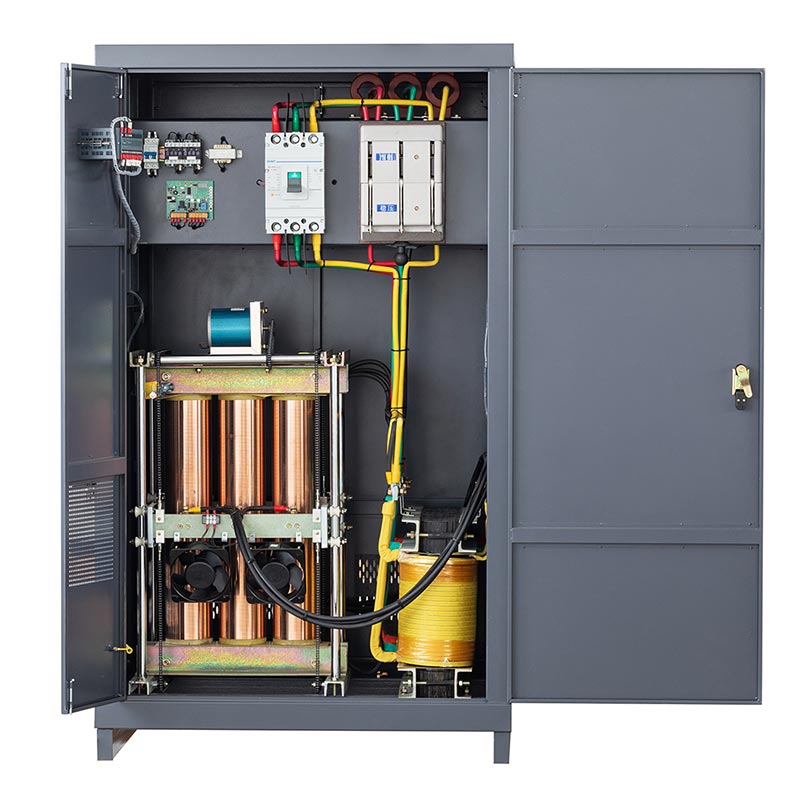

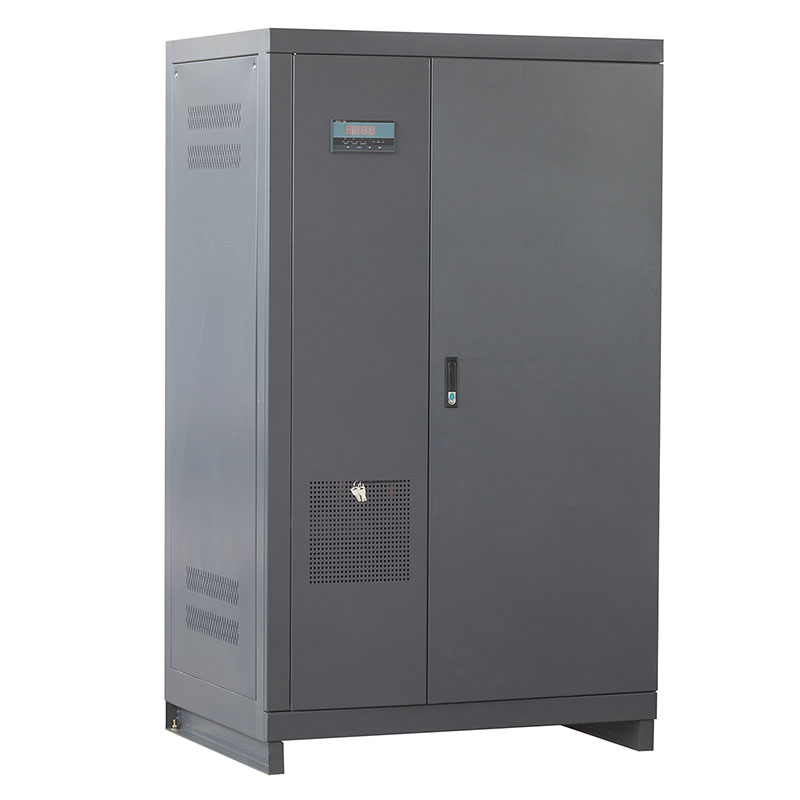

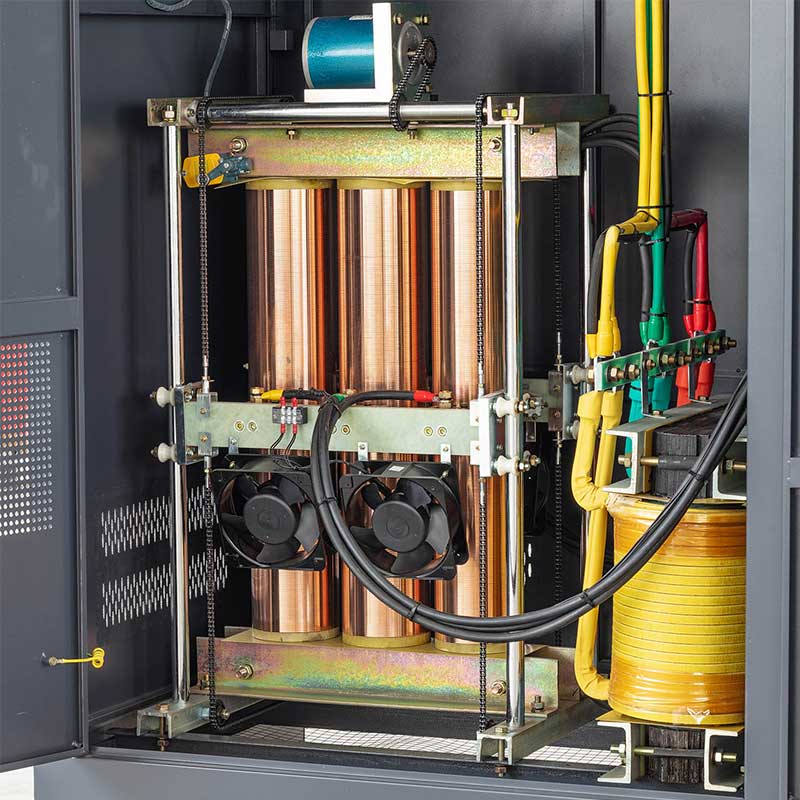

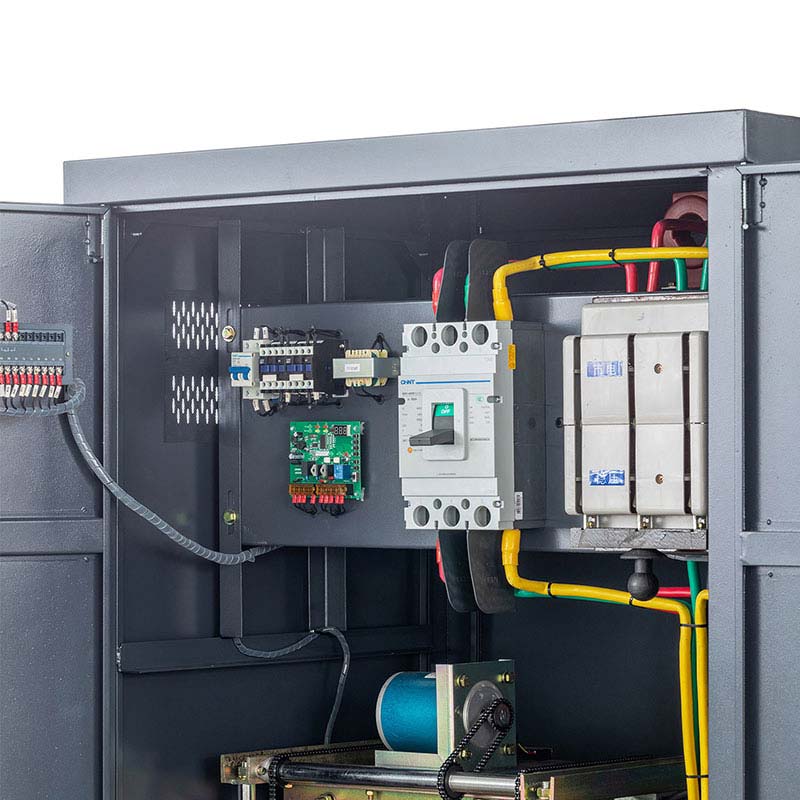

SBW series voltage stabilizer full auto compensated is designed for stabilizing AC voltage and made with Western Europe advanced technology and on the basis of our country national conditions. Three phase voltage stabilizer (SBW full auto compensated) can keep output voltage in steady state automatically when the power voltage fluctuates or the load current varies.



Features of SBW Automatic Voltage Regulator (AVR)

1.The AC voltage regulator is equipped with bypass system

2.Compensated voltage technology is adopted

3.Wide input voltage range

4.Overvoltage  protection

5.The voltage regulator has output voltage three-phase auto-balance function

6.SBW voltage regulators are widely used in electric power supply systems.



Product Parameter of the SBW voltage stabilizer

Input voltage

Three-phase four-line system voltage:220±20%

line voltage:380V±20%, or phase voltage:220±30%,

line voltage:380V±30%(can be selected. Please specify when ordering.)

Single-phase:220V±20% or 220V±30%(can be seleted. Please specify when ordering.)

Output voltage

Phase voltage:220V Single-phase:220V Line voltage:380V

Output voltage accuracy

2-5%(can be adjusted.) Frequency:50Hz/60Hz

Efficiency

≥98%(Power grade is over 50KVA)

Ambient temperature

-10ºC~±40ºC

Insulation resistance

≥2MΩ

Electric intensity

The voltage for electrical strength and power frequency sinusoidal is 2000V without breakdown and flash over when lasts 1 minute

Overload Capacity

It can lase 1 minute at the rated current of two times

Wave form Distortion

No Additional Waveform Distortion

Protective function

It offers the protections against over voltage,over current,phase shortage and phase-sequence(The single-phase offers no protection against the phase shortage and phase-sequence.)and mechanical failure.

Response Speed

≤1.5S (In the condition that the external voltage changes is 10%)





Our factory



Honle Group Co.,Ltd is a manufacturer specialized in developing,producing,marketing as a body to produce electric power including voltage regulators/stabilizers,transformers,switching power and converters etc. Our products have been the best-selling at the Bangladesh,Iran,India,Russia,Indonesia,Thailand and other countries in southeast Asia and Africa area,they are highly praised and welcomed by foreign customers.

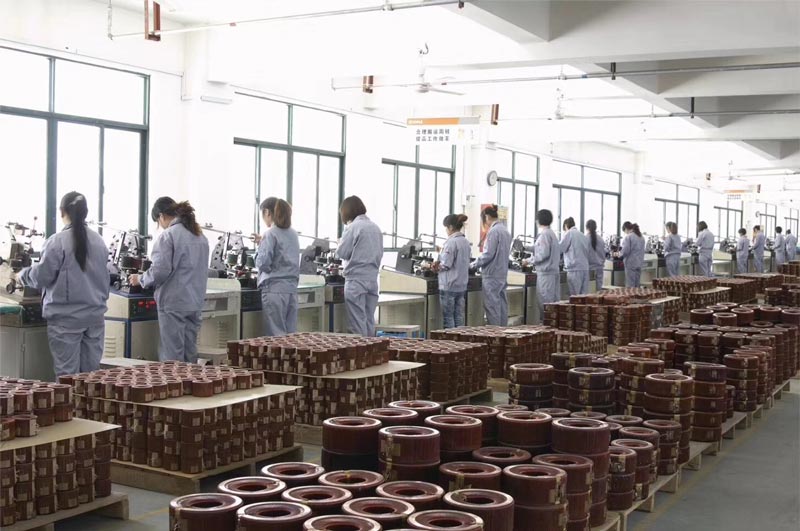

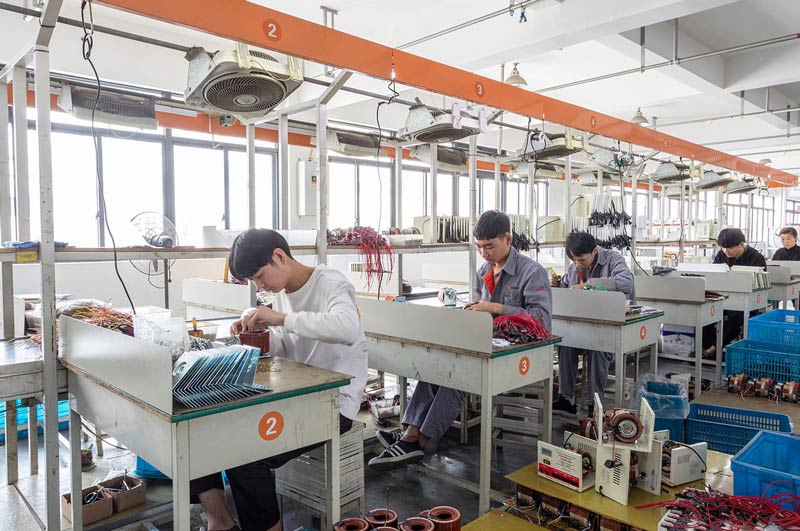

Our workshop have a professional production and test equipment, which major in voltage stabilizer for more than 10 years. We always have the idea of voltage stabilizer quality control, technical method innovation,and customers feedback development.









Our Service



1.We can provide voltage stabilizer sample pieces.
2.We can make the special samples of voltage stabilizer as clients' requirement.
3.We can do everything before delivery. You only need to make the oUPR-r of voltage stabilizer,then box designing,raw material preparing,product producing,delivery and documents preparing all can be done by ourselves.









Our Certificate



We has a lot of certificate of the voltage stabilizer quality report, test report,CE certificate, ISO certificate and so on. We can also do the specific certificate for client’s country. Such as CNCA,TUV etc.
