TM Series Voltage Stabilizer
TM Series Voltage Stabilizer

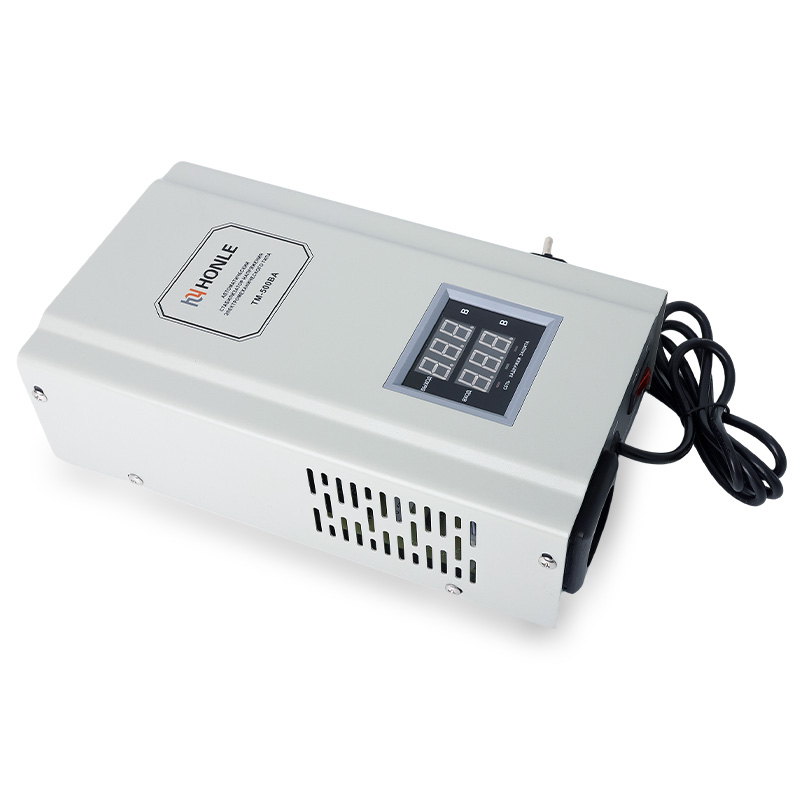

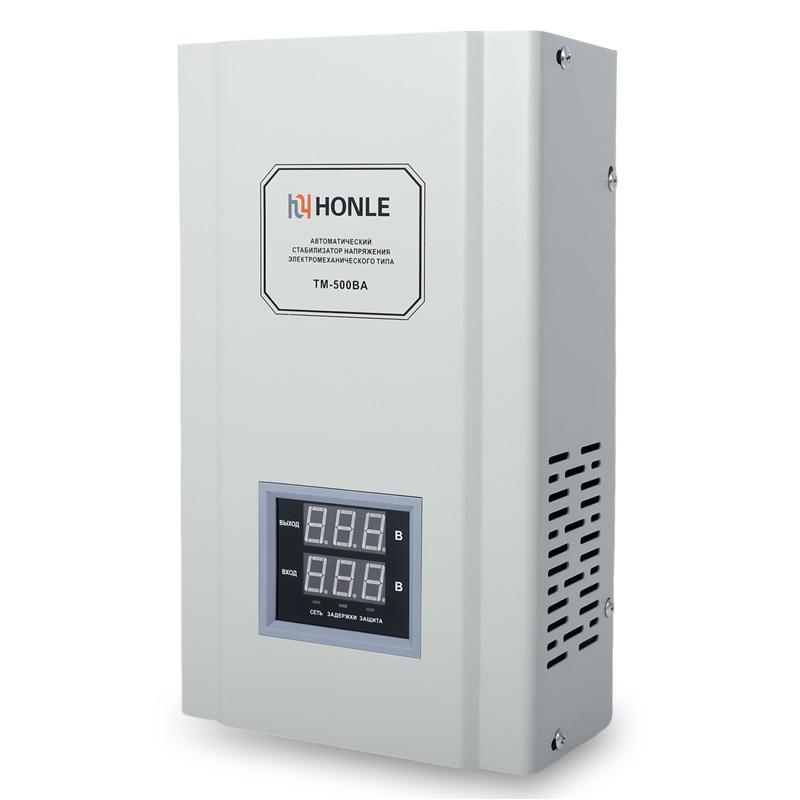

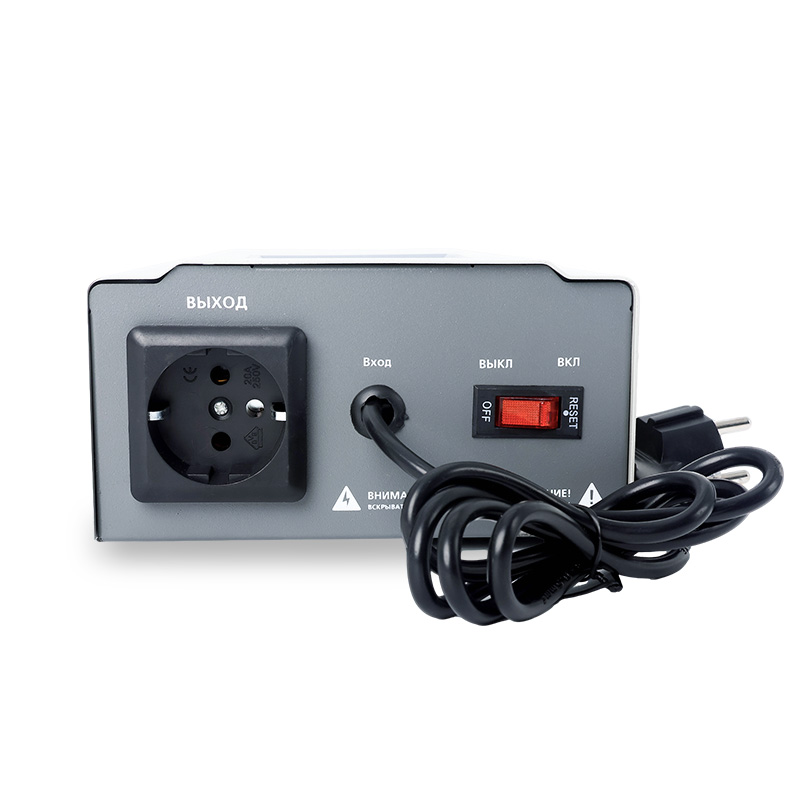

TM Series AC Automatic Relay Voltage Stabilizer

TM series intelligent AC voltage stabilizer , which is developed by our company adopts 8 - position CPU.  It has kinds of protections against time-lag, over-voltage, under-voltage, overload and excess temperature and so on, uses hanging type installation for requiring small area.

Feature

Developed by Our Company Adopts 8-position CPU

Intelligent AC Voltage Stabilizer

Protections Against Time-lag, Over-voltage, Under-voltage, Overload and Excess Temperature and So On

Uses Hanging Type Installation For Requiring Small Area

High Efficiency, No Waveform Distortion, Stable Output Voltage, Less Electric Consumption and Can Work Continuously

Get Quote

Product Introduction

Overview



TM series intelligent AC voltage stabilizer , which is developed by our company adopts 8 - position CPU.  It has kinds of protections against time-lag, over-voltage, under-voltage, overload and excess temperature and so on, uses hanging type installation for requiring small area. Which forms the control system with linear integrated circuit, and drive the contact voltage regulator to start regulating by controlling the servo motor. It is provided with delay, over-voltage, under-voltage, over-current and so on protection function to ensure the safety of the power supply. It has the advantage of high efficiency, no waveform distortion, stable output voltage, less electric consumption and can work continuously.



Product Parameter of the TM voltage stabilizer

lnput voltage

Single-phase 140V-260V

Output voltage

Single-phase 220v

Accuracy of voltage stabilization

±8%

Frequency

50Hz/60Hz

Adjusting time

<1s (when input voltage has a change of 10%)

Efficiency

>90%

Over-voltage Protection value

①250Vdelay5S;②275V/delay 2s③295V/delay 1s④305V/0s

Under-voltage  Protection value

180V/delay 5s

Delay time

Long 180S,short 5s

Overload protection value

1.05times of rated power/60s
1.4times of rated power/5s
2times of rated power/0s

Excess temperature protection value

100℃

Ambient temperature

-5℃--+40℃

Relative humidity

≤90%

Waveform distortion

No additional waveform distortion

Load power factor

0.8

Dielectric strength

1500V/min





Our factory



Honle Group Co.,Ltd is a manufacturer specialized in developing,producing,marketing as a body to produce electric power including voltage regulators/stabilizers,transformers,switching power and converters etc. Our products have been the best-selling at the Bangladesh,Iran,India,Russia,Indonesia,Thailand and other countries in southeast Asia and Africa area,they are highly praised and welcomed by foreign customers.







Our workshop have a professional production and test equipment, which major in voltage stabilizer for more than 10 years. We always have the idea of voltage stabilizer quality control, technical method innovation,and customers feedback development.









Our Service



1.We can provide voltage stabilizer sample pieces.
2.We can make the special samples of voltage stabilizer as clients' requirement.
3.We can do everything before delivery. You only need to make the oUPR-r of voltage stabilizer,then box designing,raw material preparing,product producing,delivery and documents preparing all can be done by ourselves.









Our Certificate



We has a lot of certificate of the voltage stabilizer quality report, test report,CE certificate, ISO certificate and so on. We can also do the specific certificate for client’s country. Such as CNCA,TUV etc.
