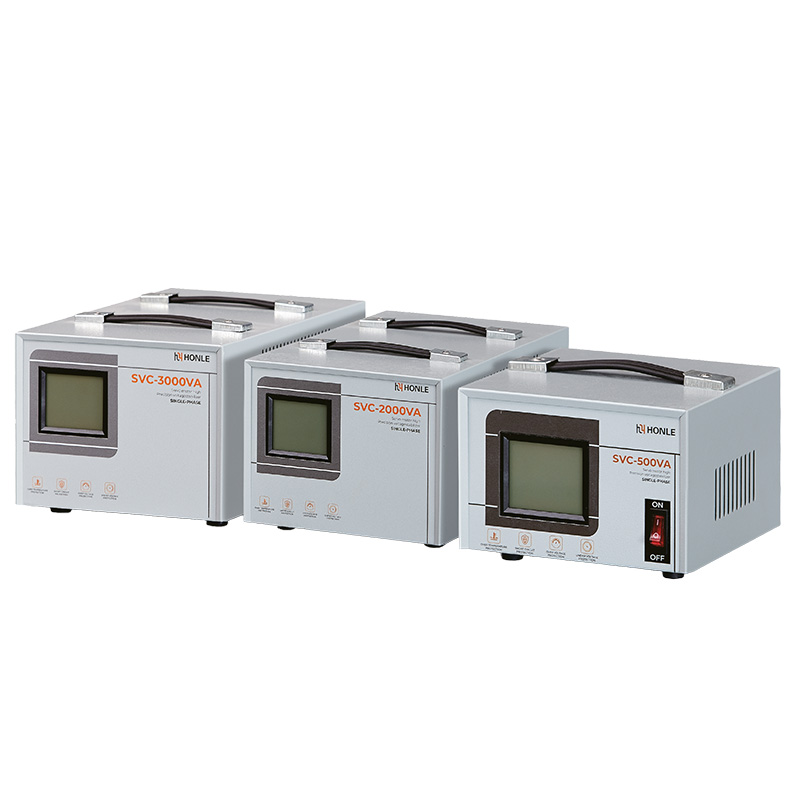

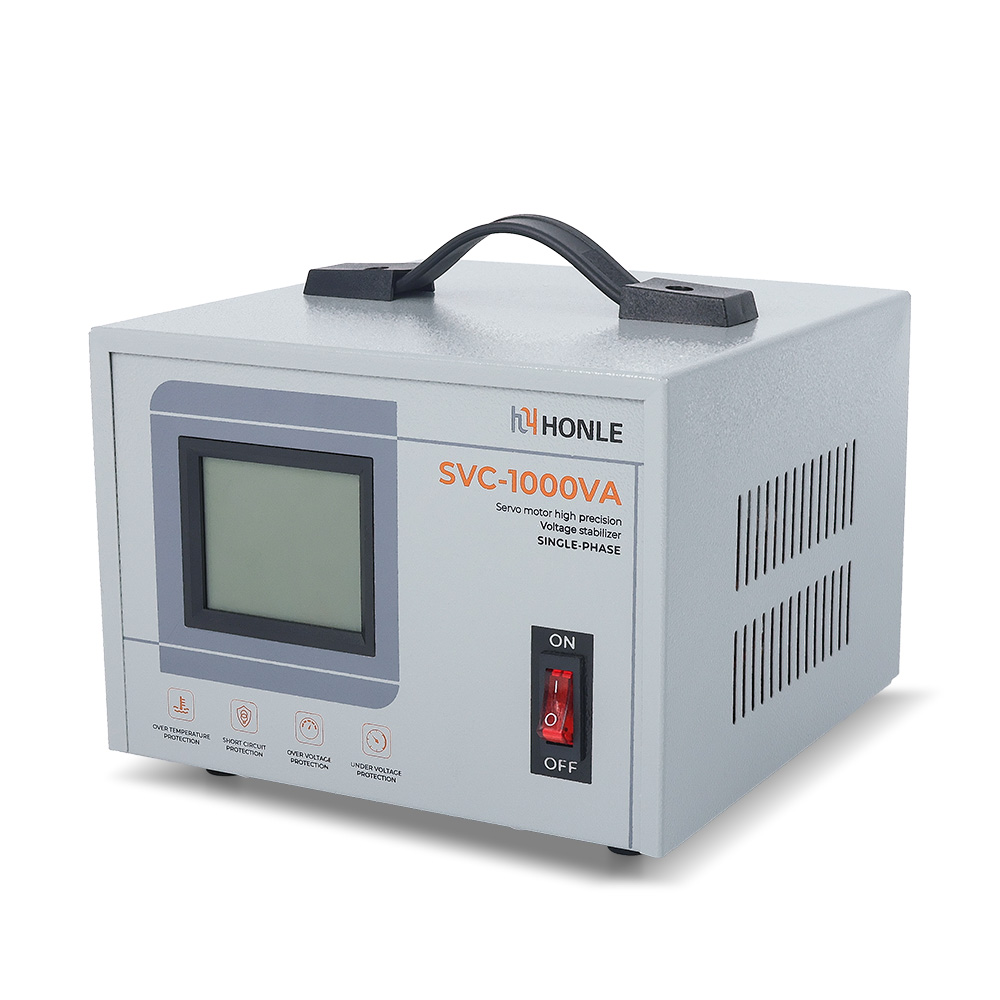

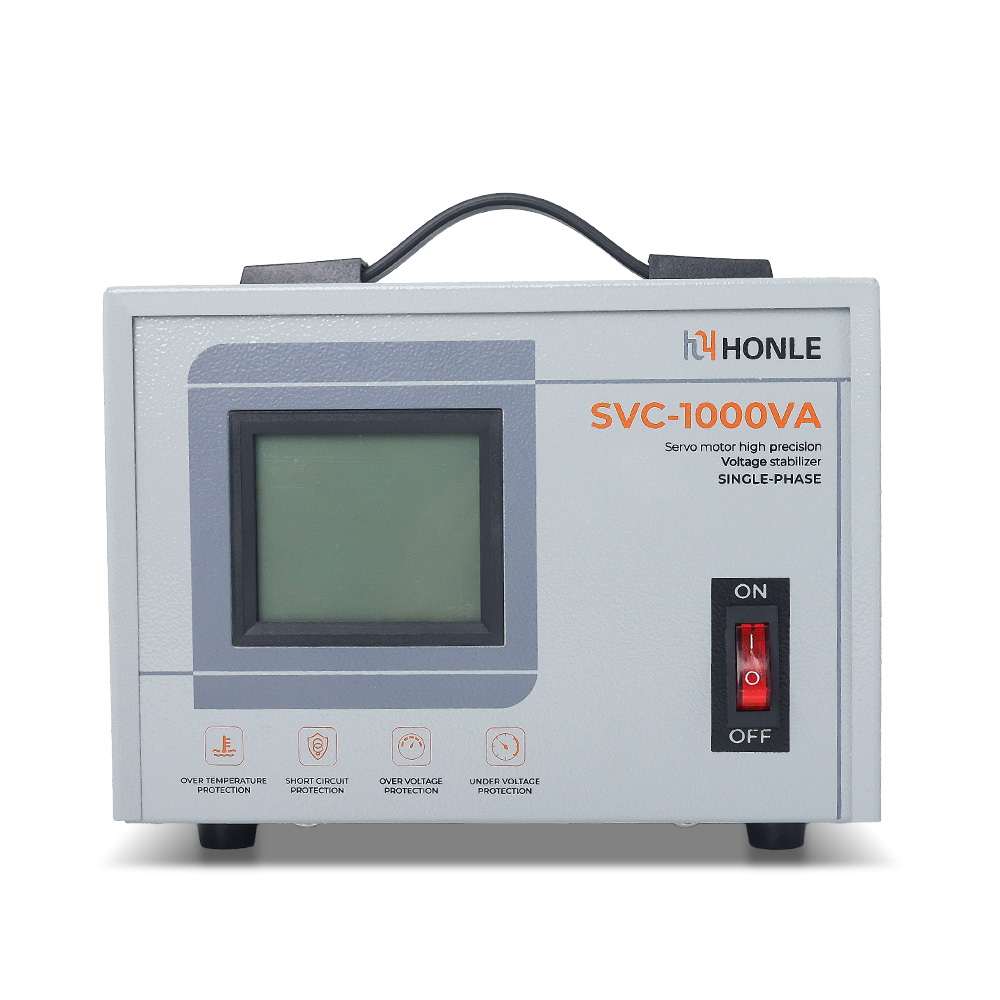

SVC Series Servo Voltage Stabilizer

SVC Single-phase high accuracy full automatic AC voltage stabilizer is made of regulator, servo motor, automatic control circuit and so on.

Feature

Small Volume, Light Weigh

Undistorted Waveform, High Efficiency

Reliable Performance and time-delay, over-voltage

Get Quote

Product Introduction

Overview

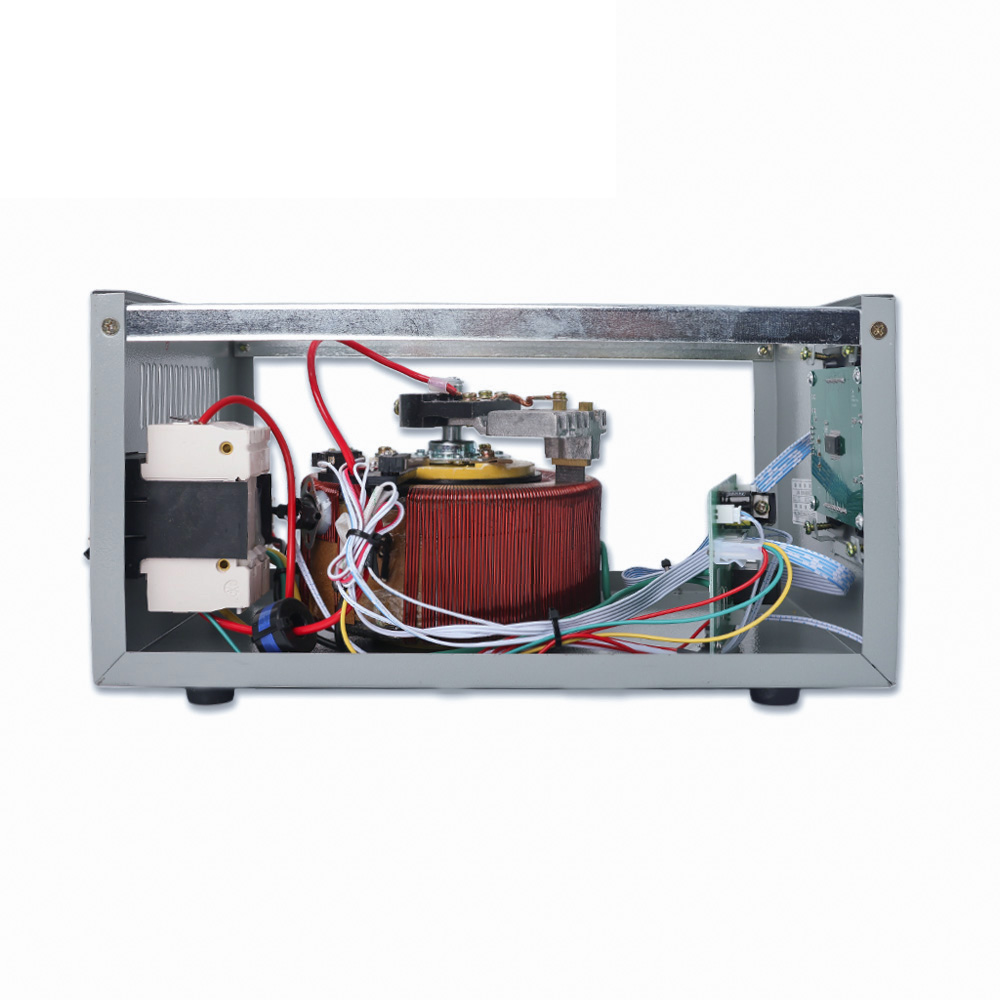

SVC Single-phase high accuracy full automatic AC voltage stabilizer is made of regulator, servo motor, automatic control circuit and so on. This voltage stabilizer can work when the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state. This voltage stabilizer has advantages of small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage, etc, the series of stabilizers driven, of general type, the indeed voltage stabilized sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.



Product Technical Parameter

Input voltage

160~250V

Output voltage

220V+/-3% 110V+/-4%

Phase

single phase

Frequency

50-60HZ

Adjusting time

<1S(When input voltage has a change of 10%)

Max of

0.5 1 1.5 2 3 5 10 15 20 30KVA

Output current

2A  4A  6.5A  8A  12A  20A  28A  40A 60A 80A 120A

Delay

Short Deley3~7 Sec  long delay 3~7min

Temperature rise

<60 C(full load)

Ambient temperature

-5~+40 C

Relative humidity

<90 C

Wave form distortion

No wave form distortion

Efficiency

>95%

Insulation resistance

≥2MΩ





Our factory



Honle Group Co.,Ltd is a manufacturer specialized in developing,producing,marketing as a body to produce electric power including AC voltage regulators/stabilizers, single-phase voltage stabilizer, svc voltage stabilizer, automatic voltage regulator, transformers, switching power and converters etc. Our products have been the best-selling at the Bangladesh,Iran,India,Russia,Indonesia,Thailand and other countries in southeast Asia and Africa area,they are highly praised and welcomed by foreign customers.







Our workshop have a professional production and test equipment, which major in digital voltage stabilizer for more than 10 years. We always have the idea of voltage stabilizer quality control, technical method innovation,and customers feedback development.









Our Service



1.We can provide voltage stabilizer sample pieces.
2.We can make the special samples of voltage stabilizer as clients' requirement.
3.We can do everything before delivery. You only need to make the oUPR-r of voltage stabilizer,then box designing,raw material preparing,product producing,delivery and documents preparing all can be done by ourselves.









Our Certificate



We has a lot of certificate of the voltage stabilizer quality report, test report,CE certificate, ISO certificate and so on. We can also do the specific certificate for client’s country. Such as CNCA,TUV etc.
