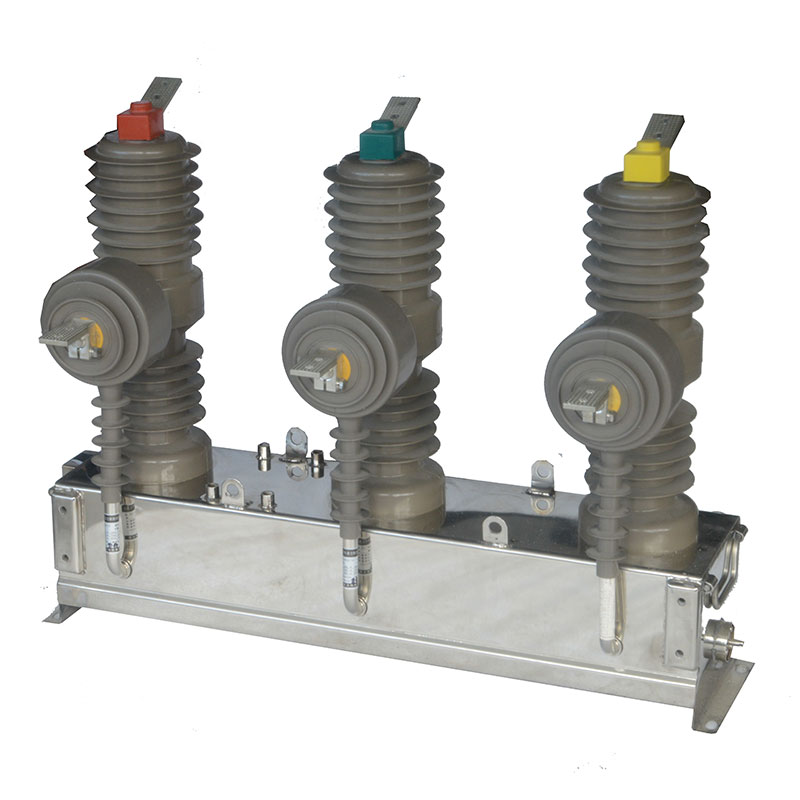

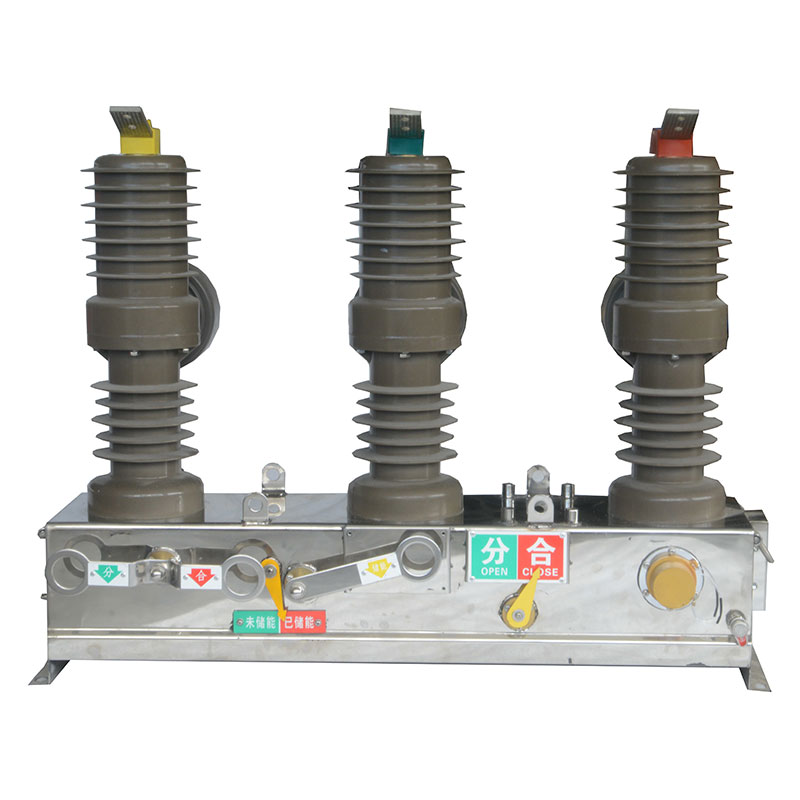

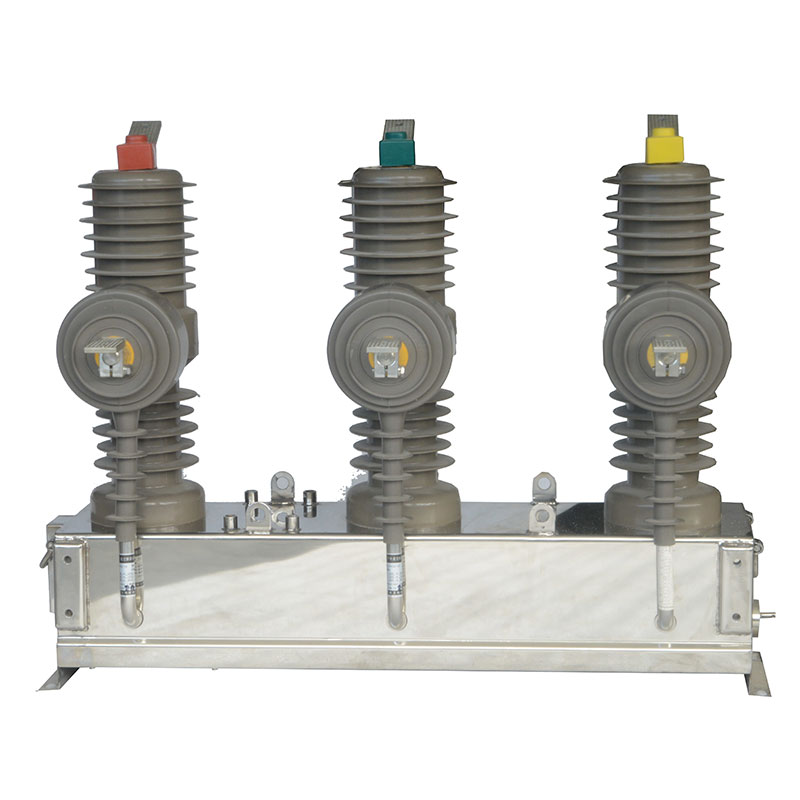

ZW32-12,24,40.5 outdoor vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution equipment with rated voltage of 12KV,24KV or 40.5KV and three-phase AC 50Hz.

Feature

Get Quote

Product Introduction

Product Overview



ZW32-12,24,40.5 outdoor vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution equipment with rated voltage of 12KV,24KV or 40.5KV and three-phase AC 50Hz. It is mainly used to break and close the load current, overload current and short circuit current in the power system. It is suitable for protection and control in substation and industrial and mining enterprise substation systems, and places where rural power grids operate frequently.

The circuit breaker has the characteristics of small size, light weight, anti-condensation and maintenance-free, and can adapt to harsh weather conditions and dirty environments.





Technical parameter

No.

Item

Unit

parameter

1

Rated voltage

KV

12,24,40.5

2

Rated frequency

Hz

50

3

Rated current

A

6,301,250,200,025,000,000

4

Rated short-circuit breaking current

KA

20

5

Rated peak withstand current (peak)

KA

50

6

Rated short-time withstand current

KA

20

7

Rated short circuit closing current (peak)

KA

50

8

Mechanical life

Time

10000

9

Rated short circuit current breaking times

Time

30

10

Power frequency withstand voltage (1min): (wet) (dry) phase, ground, fracture

KV

42/48

11

Lightning impulse withstand voltage (peak), phase to ground, fracture

KV

75/85

12

Secondary circuit 1min power frequency withstand voltage

KV

2
