ZW32 series outdoor vacuum circuit breaker,with rated voltage of 12kv, 24kv or 36kv and AC three phases frequency of 50Hz, is mainly applied to close and break loading current, over loading current and short-circuit current in electrical power system.

Feature

Mainly Applied to Close And Break Loading Current, Over Loading Current and Short-Circuit Current in Electrical Power System

Has Two Working Principal, Spring or Magnetic Models. This Acr Can Also be Manual Operated or Electrical Operated

With A Digital Controller and Pt, Which Can Realize Remote Control for Power Transmission and Distribution

Get Quote

Product Introduction

Summary



ZW32 series outdoor vacuum circuit breaker,with rated voltage of 12kv, 24kv or 36kv and AC three phases frequency of 50Hz, is mainly applied to close and break loading current, over loading current and short-circuit current in electrical power system.

It has two working principal, spring or magnetic models. This ACR can also be manual operated or electrical operated. For electrical operation, it should go with a digital controller and PT, which can realize remote control for power transmission and distribution.





Product overview



---In order to meet the needs of modern power consumption management, scientific and technological means are used to solve the problem of user arrears and reduce line loss. Our company has developed a new set of 10kV High Voltage prepayment metering device. The device is suitable for high-voltage metering users between various transformer capacity levels. It can realize various relay protection, and has the characteristics of high metering accuracy, stable operation and low cost.


---Zw32-12jl outdoor column prepayment integrated circuit breaker is an outdoor power distribution equipment with rated voltage of 12kV and three-phase AC 50Hz. It is mainly used to open and close the load current, overload current and short-circuit current of high-voltage metering users. At the same time, it has the functions of metering and prepayment. It is applicable to urban and rural end users for protection and control.

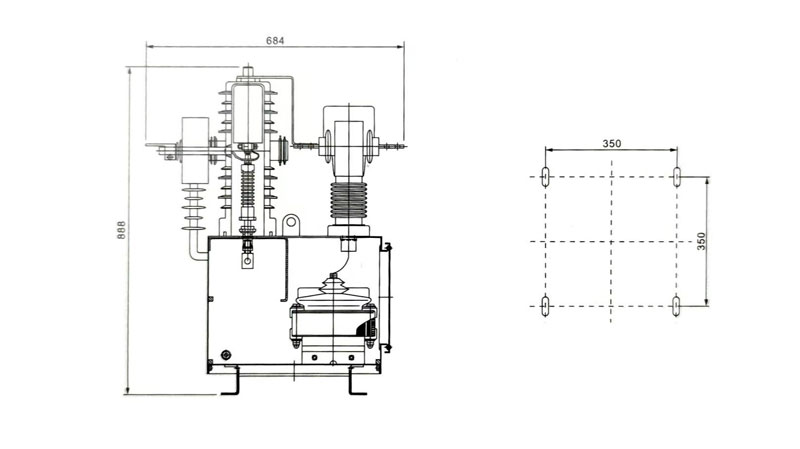

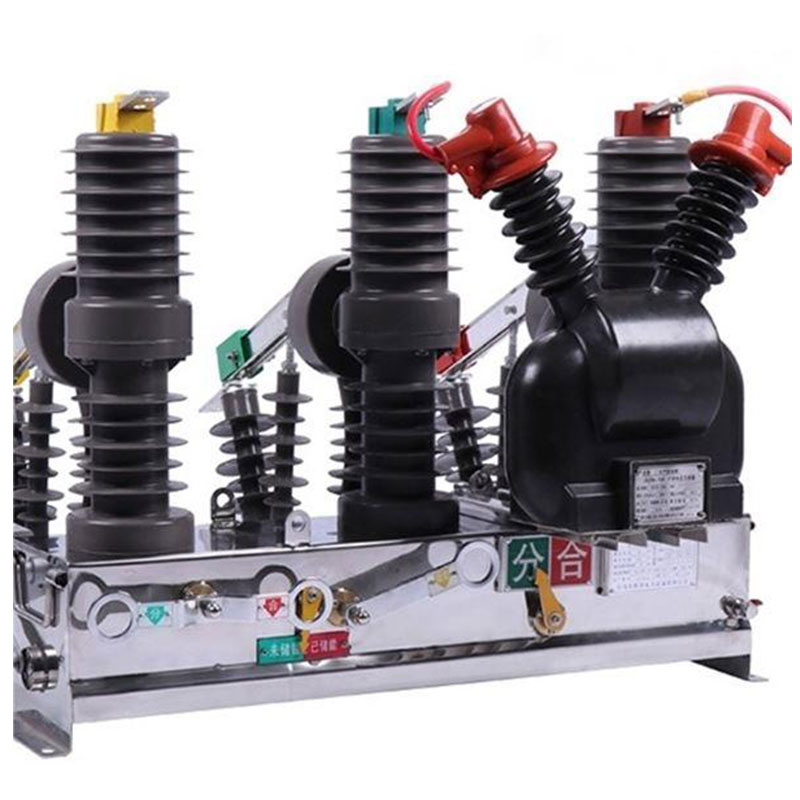

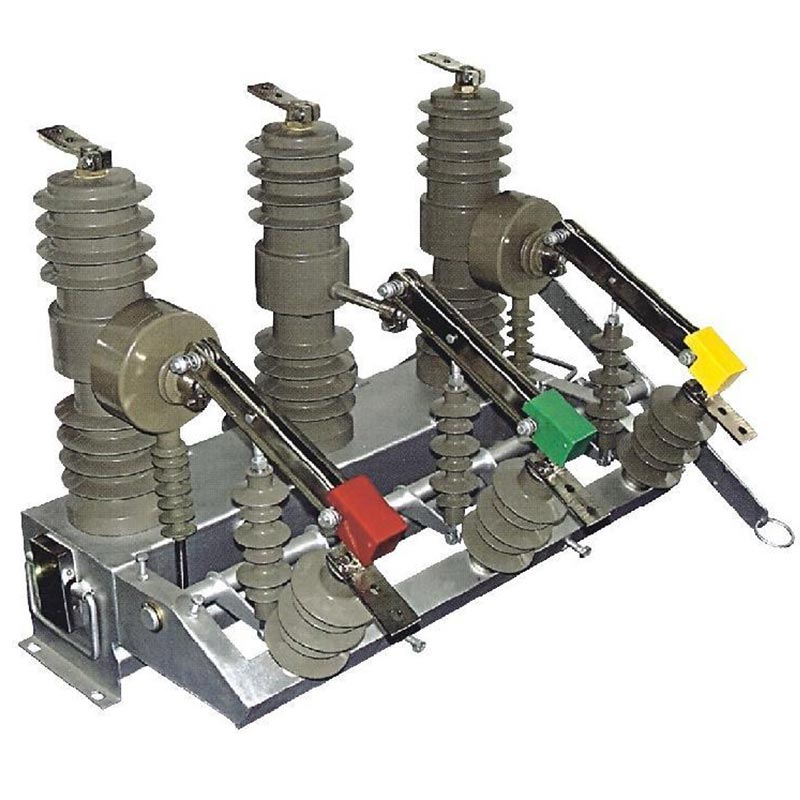

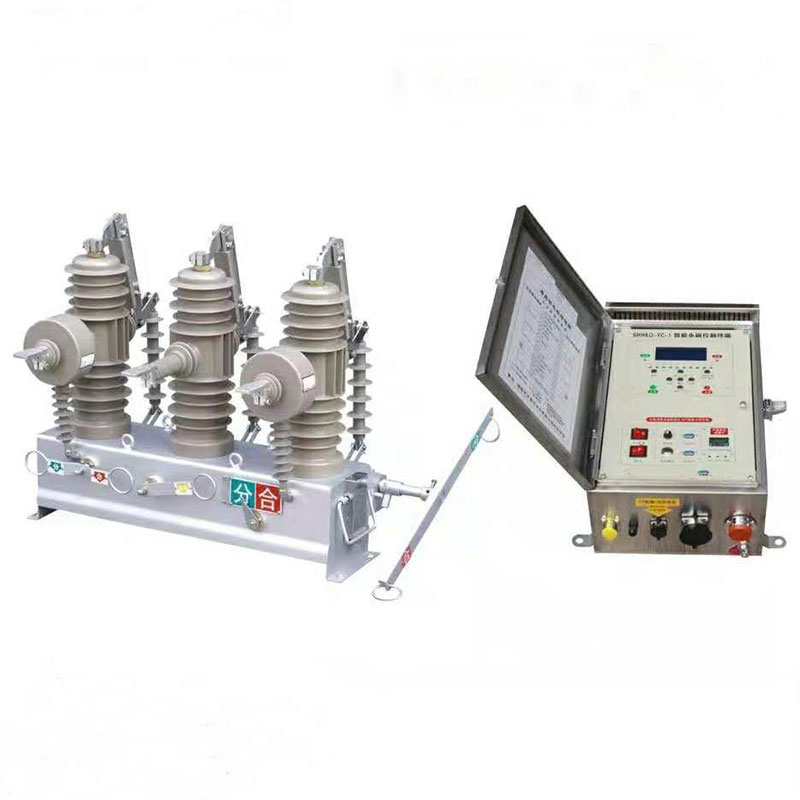

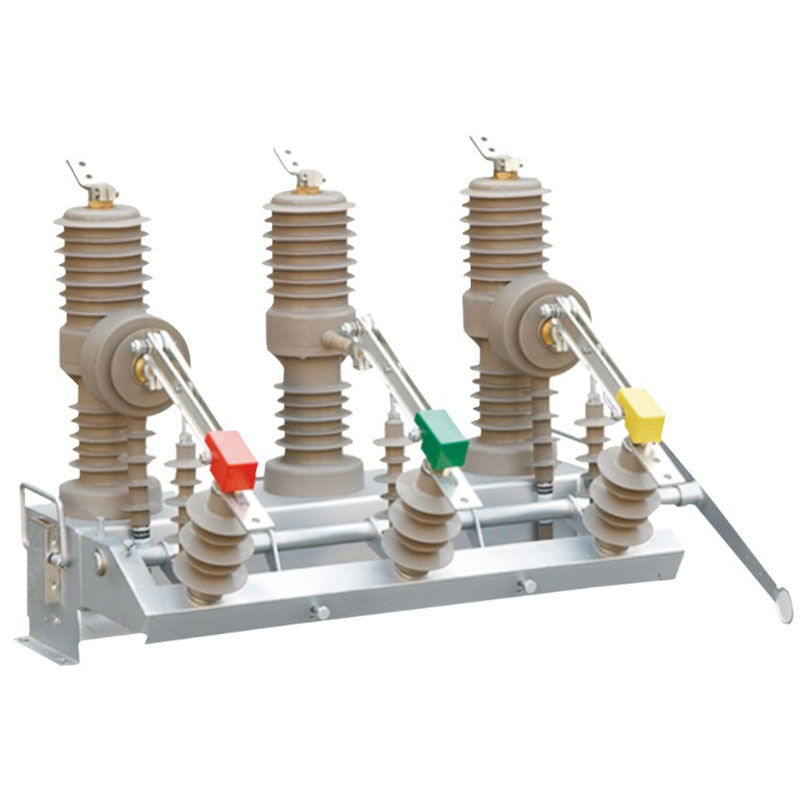

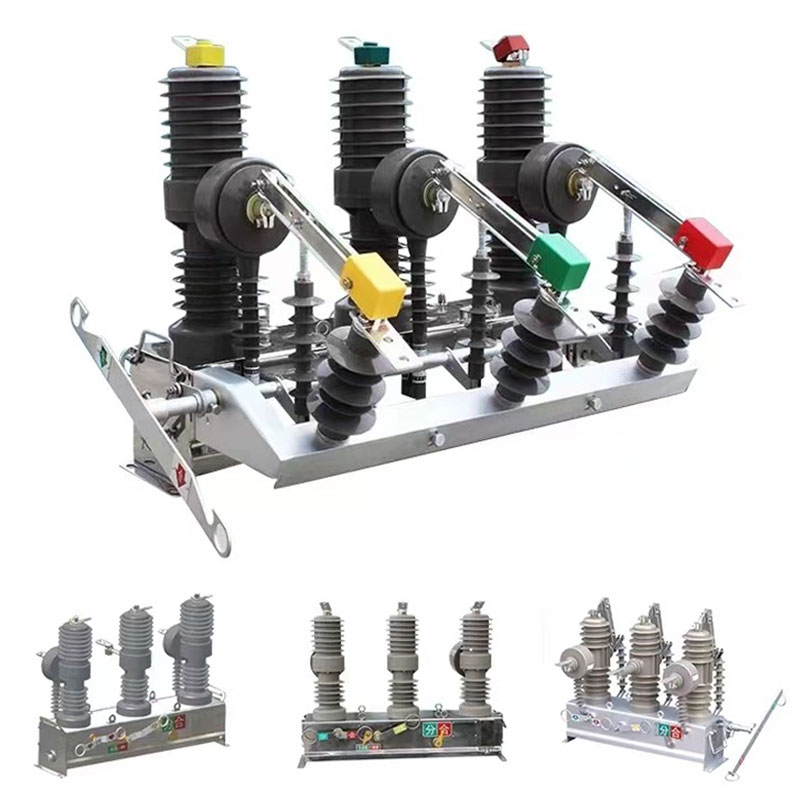

Product photo







Technical Parameters



Item

Unit

Data

Rated voltage

kV

12

Rated frequency

Hz

50

Rated current

A

630/1250

Rated short circuit breaking current

kA

20/25

Rated peak withstand current (peak)

kA

50

Rated short-time withstand current (4S)

kA

20

Rated short-circuit closing current (peak)

kA

50

Mechanical life

Times

Spring Operation 10000/Permanent Magnetic 30000

Rated current breaking

Times

O-0.3s-CO-180s-CO

Rated short-circuit breaking current

Times

30

Power frequency withstand voltage (1min)

kV

42(across open contacts:49/34)

Lightning impulse withstand voltage (peak) inter-phase

kV

72(across open contacts:85)

Closing time

ms

25~60

Total breaking time

ms

≤100

Arcing time

ms

≤20

Rated input power of energy storage motor

w

40

Rated operating voltage and rated voltage of auxiliary circuit

V

DC220/110/24
AC220/110/24

Storage time under rated voltage

s

≤10

Rated current of over-current tripper

A

5





Performance Advantages



The rated current of zw32-12jl / 630 prepaid circuit breaker is 630A (also produced according to customer requirements), and the rated short-circuit breaking current is 25kA. Cooperating with the controller, it can cut off the normal load current. At the same time, it can cut off the short-circuit current as the backup protection of the transformer.





Use Environment



1. Ambient air temperature: upper limit + 40 ºC, lower limit - 40 ºC, and the difference of 24-hour average temperature shall not exceed 35 ºC



2. The relative humidity of the atmosphere shall not exceed 50% when the ambient air temperature is + 40 ºC. At a lower temperature, there can be higher humidity: when the average minimum temperature of the wettest month is + 25 ºC, the average maximum relative humidity is 90%;



3. The pollution level is level III;



4. The altitude shall not exceed 1000mm;



5. The operation site shall be free from strong vibration and impact, corrosive metal and harmful gas damaging insulation, serious dust, conductive particles and explosive substances.
