The three-dimensional triangle structure is adopted, and the arrangement of the iron cores is more rationally combined. Three identical single frames are used to form a three-dimensional equilateral triangle, so that the three-phase iron core magnetic circuit of the product is completely symmetrical and equal in length.

Feature

The Iron Cores is More Rationally Combined

The Excitation Current and No-Load Loss are Significantly Reduced

Adopts The Exclusive Curing Process of Three-Dimensional Triangular Wound Iron Core, and The Curing Effect is Good

It Difficult to Penetrate Moisture and Completely Prevents The Conductor from Being Exposed to Various Harmful Gases and Corrosive Chemicals

Have Extremely Strong Short-Circuit Resistance Ability

A Shaft Heat Dissipation Duct That Can Dissipate Heat In Both Directions is Provided on The Inner Layer of The Coil.

Get Quote

Product Introduction

OVERVIEW



Iron core:

The three-dimensional triangle structure is adopted, and the arrangement of the iron cores is more rationally combined. Three identical single frames are used to form a three-dimensional equilateral triangle, so that the three-phase iron core magnetic circuit of the product is completely symmetrical and equal in length. Ensure that the three-phase power supply is balanced, and the magnetic resistance is greatly reduced, and the excitation current and no-load loss are significantly reduced. The iron core curing adopts the exclusive curing process of three-dimensional triangular wound iron core, and the curing effect is good. Ensure that the iron core is not deformed during assembly, transportation and operation, thereby reducing the no-load loss and noise of the iron core.



Winding:

The coil is composed of a high-voltage coil and a low-voltage coil. The low-voltage coil has a foil or cylindrical structure, and the end insulation is sealed with a resin compound; the high-voltage coil adopts a segmented Japanese barrel structure, and the epoxy resin and curing agent are selected from Huntsman The Ministry of Fine Chemical Industry (HUNTSMAN) is a high-grade insulating material, and the entire coil conductor is enclosed by a solid insulating layer of epoxy resin, so not only is it difficult to penetrate moisture, but also completely prevents the conductor from being exposed to various harmful gases and corrosive chemicals. It is possible to damage the ingredients, so its moisture-proof and anti-fouling performance is particularly good.

Use OMO between layers. The pre-impregnated cloth is formed by heat curing, and it is put into an oven to cure after winding processing to make it have extremely strong short-circuit resistance ability. According to the maximum capacity of the transformer, a shaft heat dissipation duct that can dissipate heat in both directions is provided on the inner layer of the coil.

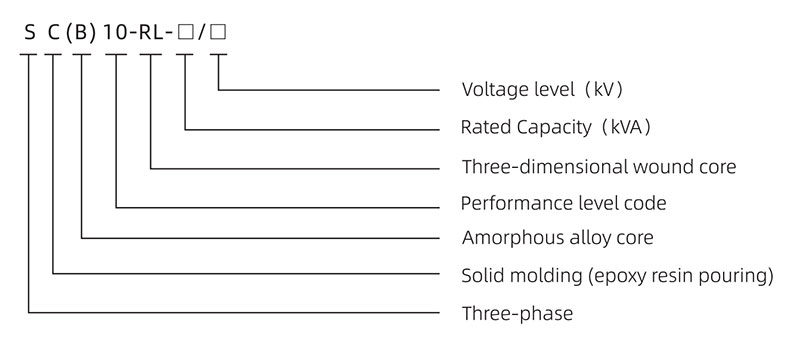

Model







Technical Parameters



Rated Capacity Voltage Combination Vector Group No-load Loss Load loss
(W)
No-load Current Impedance Voltage Exterior Size Total Weight
(kVA) High Voltage (kV) tap range Low voltage (kV)   (W) 130°C(B)
100°C
155*C(F)
120°C
180°C(H)
145°C
(%) (%) (L*W*H) (kg)
30 6
6.3
6.6
10
10.5
11
±2.5
±5
0.4 Dyn11 190 670 710 760 2.3 4.0 900*900*800 300
50 270 940 1000 1070 2.2 955*900*900 350
80 370 1290 1380 1480 1.7 985*950*960 400
100 400 1480 1570 1690 1.7 1035*1250*980 450
125 470 1740 1850 1980 1.5 1060*1280*1000 500
160 540 2000 2130 2280 1.5 1120*1320*1050 680
200 ±2*2.5
±5
620 2370 2530 2710 1.3 1135*1330*1 105 770
250 720 2590 2760 2960 1.3 1170*1330*1165 900
315 880 3270 3470 3730 1.1 1185*1360*1225 1010
400 980 3570 3990 4280 1.1 1210*1380*1300 1205
500 1160 4590 4880 5230 1.1 1245*1400*1380 1400
630 1340 5530 5880 6290 0.9 1295*1410*1355 1515
630 1300 5610 5960 6400 0.9 6.0 1295*1410*1355 1515
800 1520 6550 6960 7460 0.9 1375*1 450*1480 1880
1000 1770 7650 8130 8760 0.9 1430*1480*1525 2170
1250 2090 91 00 9690 10300 0.9 1480*1500*1570 2525
1600 2450 11000 11700 12500 0.9 1500*1520*1710 2980
2000 3050 13600 14400 15500 0.7 1570*1550*1735 3480
2500 3600 16100 17100 18400 0.7 1625*1600*1825 4080
1600 2450 12200 12900 13900 0.9 8.0 1500*1520*1710 2980
2000 3050 15000 15900 17100 0.7 1570*1550*1735 3480
2500 3600 17700 18800 20200 0.7 1625*1600*1825 4080
