Series SC(B) Three Phase Dry-type Distribution Transformer
Series SC(B) Three Phase Dry-type Distribution Transformer

Series SC(B) Three Phase Dry-type Distribution Transformer

OVERVIEWIron core:The iron core is made of imported high-quality cold-rolled silicon steel sheet, with a fully oblique seam structure, the core column is bound with F-grade non-lattice tape, and the s

Feature

The Iron Core is Made of Imported High-Quality Cold-Rolled Silicon Steel Sheet, with A Fully Oblique Seam Structure, The Core Column is Bound with F-Grade Non-Lattice Tape, and The Surface of The Iron Core is Encapsulated with Epoxy Resin, Which Reduces No-Load Loss, No-Load Current And Iron Core Noise, Clips And Fasteners are Treated with Special Surface Treatment, Which Further Improves The Appearance Quality of The Product

The Cross-Flow Top-Blowing Cooling Fan is Adopted, Which has The Characteristics of Low Noise, High Wind Pressure and Beautiful Appearance, Which Enhances The Overload Capacity of The Transformer

The Temperature Control Adopts An Intelligent Temperature Controller, Which Improves The Safety And Reliability of Transformer Operation

Get Quote

Product Introduction

OVERVIEW



Iron core:

The iron core is made of imported high-quality cold-rolled silicon steel sheet, with a fully oblique seam structure, the core column is bound with F-grade non-lattice tape, and the surface of the iron core is encapsulated with epoxy resin, which reduces no-load loss, no-load current and iron core noise, clips and fasteners are treated with special surface treatment, which further improves the appearance quality of the product.



Temperature control system and air cooling system:

The cross-flow top-blowing cooling fan is adopted, which has the characteristics of low noise, high wind pressure and beautiful appearance, which enhances the overload capacity of the transformer. The temperature control adopts an intelligent temperature controller, which improves the safety and reliability of transformer operation.



High voltage winding:

The high-voltage windings are vacuum cast with flled epoxy resin, which greatly reduces the partial discharge and improves the electrical strength of the coil. The inner and outer walls of the winding are filled with glass fiber grid plates to enhance the mechanical strength of the coil and improve the product's resistance to sudden short circuits. The ability of the coil to never crack.



Low voltage winding:

The low-voltage winding adopts a foil structure, which solves the problem of the axial helix angle when winding the wire and makes the turns more balanced. At the same time, the coil adopts an axial cooling air duct to enhance the heat dissipation capacity. The winding layer adopts TD epoxy resin prepreg. The whole is solidified and formed.

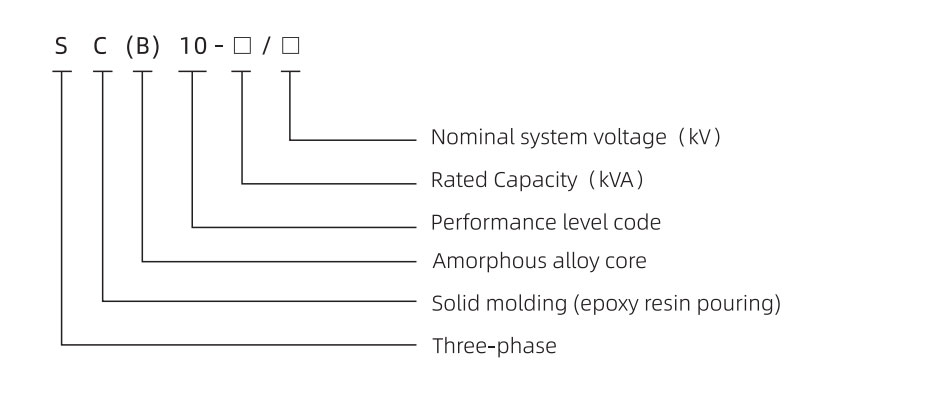

Model







Technical Parameters



Rated Capacity Voltage Ratio (kV) Vector Group Loss Values for S10 Serial Transformer No-load Current Impedance Weight Outline Dimension Gauge
(kVA) HV LV   No-load loss (W) Full-load loss (W)
(145℃)
(%) (%) (kg) L W H (mm)
30 5
6.3
6.6
10
11
±5%
or
±2*
2..5%
0.4 Dyn11
or Yyn0
190 710 2 4 240 800(1150) 440(900) 800(1200) 400
50 270 1000 1.8 310 850(1200) 440(900) 820(1300) 400
80 370 1380 1.6 470 900(1200) 660(900) 850(1300) 550
100 400 1570 1.6 520 950(1250) 660(1000) 890(1350) 550
125 470 1850 1.2 600 950(1300) 660(1000) 940(1350) 550
160 550 2130 1.2 700 1000(1400) 660(1100) 920(1400) 550
200 630 2530 1 830 1050(1400) 820(1100) 970(1450) 550
250 720 2760 1 1050 1150(1500) 860(1100) 1090(1500) 550
315 880 3470 1 1200 1150(1600)  860(1200) 1150(1550) 550
400 980 3990 0.9 1500 1250(1600) 920(1300) 1230(1600) 660
500 1160 4880 0.9 1700 1300(1700) 960(1300) 1400(1700) 660
630 1350 5880 0.8 1900 1350(1800) 960(1300) 1430(1750) 820
630 1300 5960 0.8 6 1950 1400(1800) 980(1300) 1450(1750) 820
800 1520 6960 0.8 2150 1450(1800) 980(1300) 1480(1800) 820
1000 1770 8130 0.8 2550 1500(1900) 1020(1400) 1540(1900) 820
1250 2090 9690 0.7 2900 1600(2000) 1020(1400) 1610(1900) 820
1600 2450 11730 0.6 3500 1750(2150) 1020(1400) 1680(2100) 820
2000 3050 14450 0.5 4300 1900(2300) 1060(1500) 1760(2200) 1070
2500 3600 17170 0.5 5100 2050(2400) 1060(1500) 1840(2200) 1070
