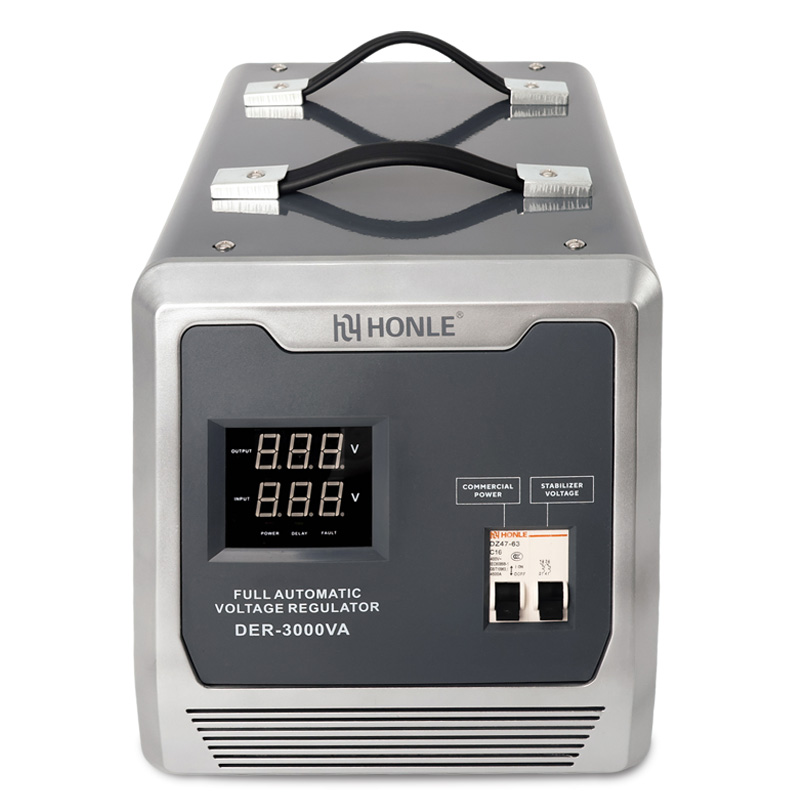

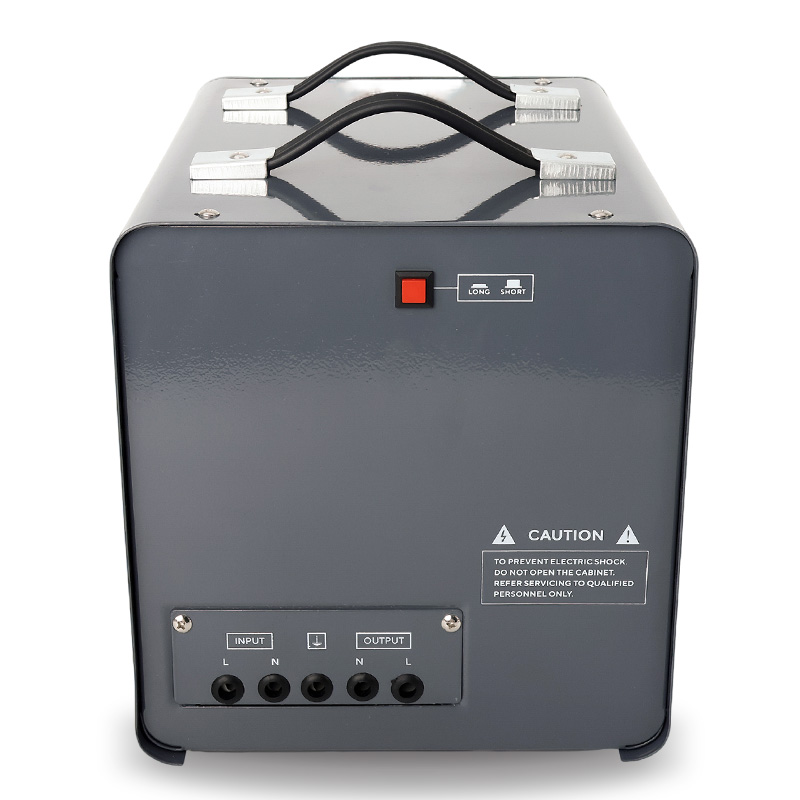

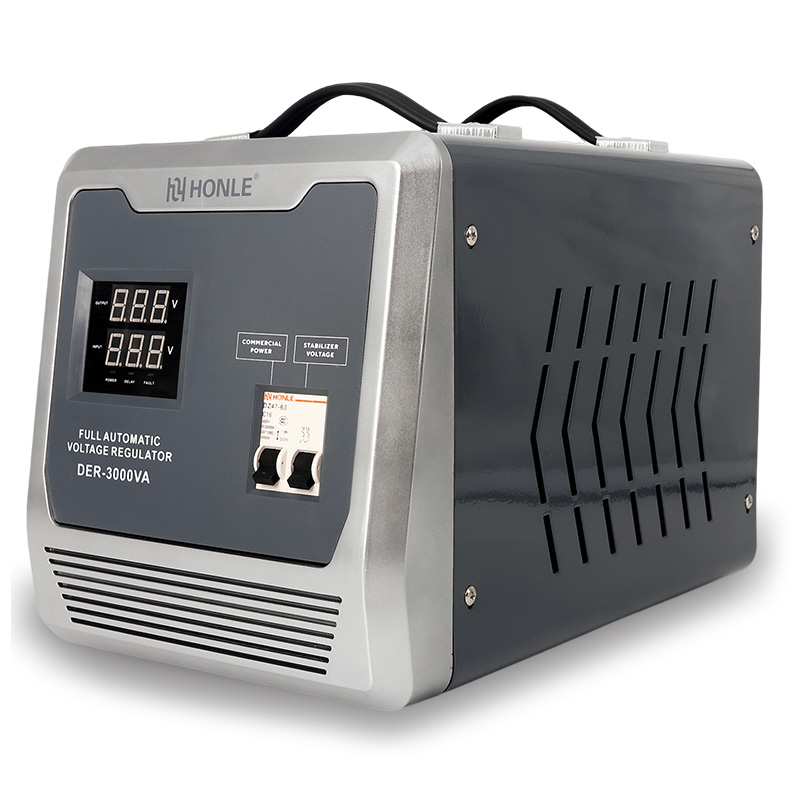

DER Series Relay Voltage Stabilizer for Home

DER SERIES Automatic AC home voltage stabilizer is composed of automatic coupling regulator,sampling control board, executing mechanism.

Feature

Small of In Volume, Light Weight, Little in Distortion Output Wave from, Quick in Reactive etc

Especially Suitable for Household Air Conditioner, Refrigerator, TV set Music Center

Needs Minimum Power Consumption and Can Be Used Continuously

Get Quote

Product Introduction

Overview



DER SERIES Automatic AC home voltage stabilizer is composed of automatic coupling regulator,sampling control board, executing mechanism. It has the characteristics of small of in volume, light weight, little in distortion output wave from, quick in reactive etc. It is especially suitable for household air conditioner, refrigerator, TV set music center. It also can length their use span, and so is the idealist AC, stabilizer for modern families.

The product needs minimum power consumption and can be used continuously.



Product Parameter of the DER voltage stabilizer


Power

500VA

1000VA

1500VA

2000VA

3000VA

5000VA



Input

Phase

Single Phase

Voltage

AC150-270V

Frequency

50Hz/60Hz

Output

 Voltage

 220V±8%,110V±10%

Efficiency

 98%

Frequency

50Hz/60Hz

Protection

Over voltage

AC246V±4V

Under-voltage

Optional

Over-voltage

Optional

By pass

Optional

Delay

3-7min/3-7sec

Over load/short circuit

Yes

Environment

Operating temperature

-10~40C

Storage temperature

-15~45C

Humidity

20% to 90%





Our factory



Honle Group Co.,Ltd is a manufacturer specialized in developing,producing,marketing as a body to produce electric power including voltage regulators/stabilizers,transformers,switching power and converters etc. Our products have been the best-selling at the Bangladesh,Iran,India,Russia,Indonesia,Thailand and other countries in southeast Asia and Africa area,they are highly praised and welcomed by foreign customers.







Our workshop have a professional production and test equipment, which major in voltage stabilizer for more than 10 years. We always have the idea of voltage stabilizer quality control, technical method innovation,and customers feedback development.









Our Service



1.We can provide voltage stabilizer sample pieces.
2.We can make the special samples of voltage stabilizer as clients' requirement.
3.We can do everything before delivery. You only need to make the oUPR-r of voltage stabilizer,then box designing,raw material preparing,product producing,delivery and documents preparing all can be done by ourselves.









Our Certificate



We has a lot of certificate of the voltage stabilizer quality report, test report,CE certificate, ISO certificate and so on. We can also do the specific certificate for client’s country. Such as CNCA,TUV etc.
