S11 Series Three Phase Oil Immersed Distribution Transformer
S11 Series Three Phase Oil Immersed Distribution Transformer

S11 Series Three Phase Oil Immersed Distribution Transformer

the iron core is made by crystal grain-oriented silicon-steel sheet; GEORG cross cut shear (made in West Germany) is adopted to cut the silicon-steel sheet with a 45*joint seam; fold the sheet into a multistage roll cross-section to reduce the noise and power consumption.

Feature

The Iron Core is Made By Crystal Grain-Oriented Silicon-Steel Sheet;Fold The Sheet Into A Multistage Roll Cross-Section To Reduce The Noise And Power Consumption

Cylinder Type For High Voltage or Foil Type For Low Voltage; Can Increase The Ability To Resist Short Circuit And Strike; And The Distribution of Magnetic Path Is More Rational

The Oil Tank is Made By Fine Cold-Rolled Steel Sheets; Georg Corrugation Oil Tank Production-Line Is Adopted; The Isolation From Air Guarantees A Low Aging Speed Of Oil And A Long Life Expectancy Of Transformer.

Oil-Immersed Distribution Transformer Adopts A-Level Insulation Structure

Get Quote

Product Introduction

OVERVIEW



lron core:

the iron core is made by crystal grain-oriented silicon-steel sheet; GEORG cross cut shear (made in West Germany) is adopted to cut the silicon-steel sheet with a 45*joint seam; fold the sheet into a multistage roll cross-section to reduce the noise and power consumption.



Coil:

cylinder type for high voltage; cylinder type or foil type for low voltage; this can increase the ability to resist short circuit and strike; and the distribution of magnetic path is more rational.



Oil tank:
the oil tank is made by fine cold-rolled steel sheets; GEORG corrugation oil tank production-line is adopted; to meet environmental needs, then, antiseptic coating material is applied on the surface, which can meet the requirements for petroleum and chemical industry (much oil stain and many chemical substances). In addition, the corrugations not any possess heat radiation function, but also meet the requirement for oil expansion and oil contraction trader normal performance. The isolation from air guarantees a low aging speed of oil and a long life expectancy of transformer.



Insulation structure:

oil-immersed distribution transformer adopts A-level insulation structure; high voltage coil and low voltage coil are concentric; the space between coils is cardboard sleeve small oil clearance oil partition structure.

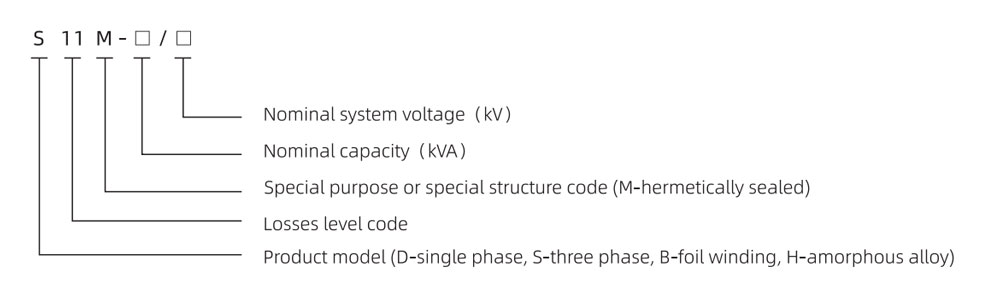

Model





Technical Parameters



Rated Capacity Voltage Combination Vector Group No-load Loss Load Loss No-load Current Impedance Voltage Total Weight Exterior Size Installation center
/Installation hole
(kVA) High voltage
(kV)
Tap range Low voltage
(kV)
  (W) (W) (%) (%) (kg) (L*W*H) (mm) (mm)
30 6
6.3
10
10.5
11
±5%
or
±2*2.5%
0.4 Ydn0
or
Dyn11
100 630/600 1.8 4.0 335 1030*690*860 400*400/4*Φ14
50 130 910/870 1.6  410 1045*700*925 400*400/4*Φ14
63 150 1090/1040 1.5 460 1075*710*940 400*400/4*Φ14
80 180 1310/1250 1.4  490 1080*715*995 400*400/4*Φ19
100 200 1580/1500 1.3 550 1110*730*1020 400*400(550)/4*Φ19
125 240 1890/1800 1.2 615 1135*740*1035 400*400(550)/4*Φ19
160 280 2310/2200 1.1 695 1155*755*1050 550*550/4*Φ19
200 340 2730/2600 1 790 1200*770*1075 550*550/4*Φ19
250 400 3200/3050 0.9 930 1240*800*1100 550*550/4*Φ19
315 480 3830/3650 0.8 1110 1305*840*1120 550*550/4*Φ19
400 570 4520/4300 0.7 1290 1390*900*1160 660*660/4*Φ19
500 680 5410/5150 0.7 1510 1500*990*1195 660*660/4*Φ19
630 810 6200 0.6 4.5 1730 1580*1030*1305 660*660/4*Φ19
800 980 7500 0.6 2075 1705*1140*1360 820*820/4*Φ19
1000 1150 10300 0.5 2490 1730*1290*1395 820*820/4*Φ19
1250 1360 12000 0.4 2960 1780*1320*1480 820*820/4*Φ19
1600 1640 14500 0.4 3515 1890*1430*1520 820*820/4*Φ19
2000 1940 18300 0.4 5 4880 2050*1360*1840 820*820/4*Φ19
2500 2290 21200 0.4 6010 2170*1430*2015 1070*1070/4*Φ19
