S13-M.RL Series Three Phase Oil Immersed Distribution Transformer
S13-M.RL Series Three Phase Oil Immersed Distribution Transformer

S13-M.RL Series Three Phase Oil Immersed Distribution Transformer

The three-dimensional triangle roll is intimately composed of three identical single frames. The three core posts are arranged in an equilateral triangle. The magnetic path length of the three core posts is completely the same, and the shortest.

Feature

The Three-Dimensional Triangle Roll is Intimately Composed of Three Identical Single Frames

The Transformer Oil Tank Adopts A Near-Micro Triangle Structure, So The Volume is Smaller Than The Conventional Rectangular Oil Tank, The Structure is Compact, And The Appearance Is Beautiful.

Get Quote

Product Introduction

OVERVIEW



lron core:

The three-dimensional triangle roll is intimately composed of three identical single frames. The three core posts are arranged in an equilateral triangle. The magnetic path length of the three core posts is completely the same, and the shortest. The loss of the three core posts is the same, S0 the three-phase magnetic circuit is balanced.The production efficiency is improved. The three-dimensional triangular wound core is the same as the planar wound core in that it is rolled on the production line to eliminate the quality fluctuations caused by manual lamination and stacking of the stacked iron core.At the same time, the body structure of the three-dimensional triangular wound iron core. transformer determines that its short circuit resistance is better than that of the planar transformer.



Oil tank:

The appearance is beautiful, the transformer oil tank adopts a near-micro triangle structure, So the volume is smaller than the conventional rectangular oil tank, the structure is compact, and the appearance is beautiful.

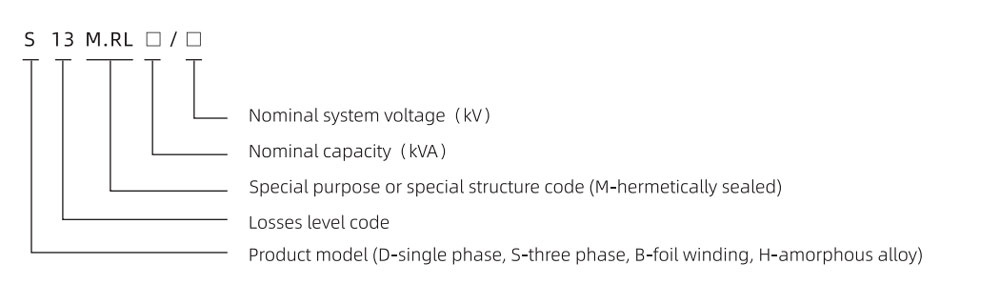

Model





Technical Parameters



Rated Capacity Voltage Combination(kv) Vector Group No-load Loss Load loss
(w)
No-load Current Short circuit Impedance
(kVA) High voltage Tapping range Low voltage   (W) Dy Yy (%) (%)
S13-M.RL-30 30 10
6.3
6
±5%

±2*2.5%
0.4 Yyn0
or
Dyn11
80 630 600 4.0
S13-M.RL-50 50 100 910 870
S13-M.RL-80 80 130 1310 1250
S13-M.RL-100 100 150 1580 1500
S13-M.RL-125 125 170 1890 1800
S13-M.RL-160 160 200 2310 2200
S13-M.RL-200 200 240 2730 2600
S13-M.RL-250 250 290 3200 3050
S13-M.RL-315 315 340 3830 3650
S13-M.RL-400 400 410 4520 4300
S13-M.RL-500 500 480 5410 5150
S13-M.RL-630 630 570 6200 6200 4.5
S13-M.RL-800 800 700 7500 7500
S13-M.RL-1000 1000 830 10300 10300
S13-M.RL-1250 1250 970 12000 12000
S13-M.RL-1600 1600 1170 14500 14500
S13-M.RL-2000 2000 1510 17800 17800 According to
customer
requirements
S13-M.RL-2500 2500 1780 20700 20700
S13-M.RL-3150 3150 2100 24300 24300
