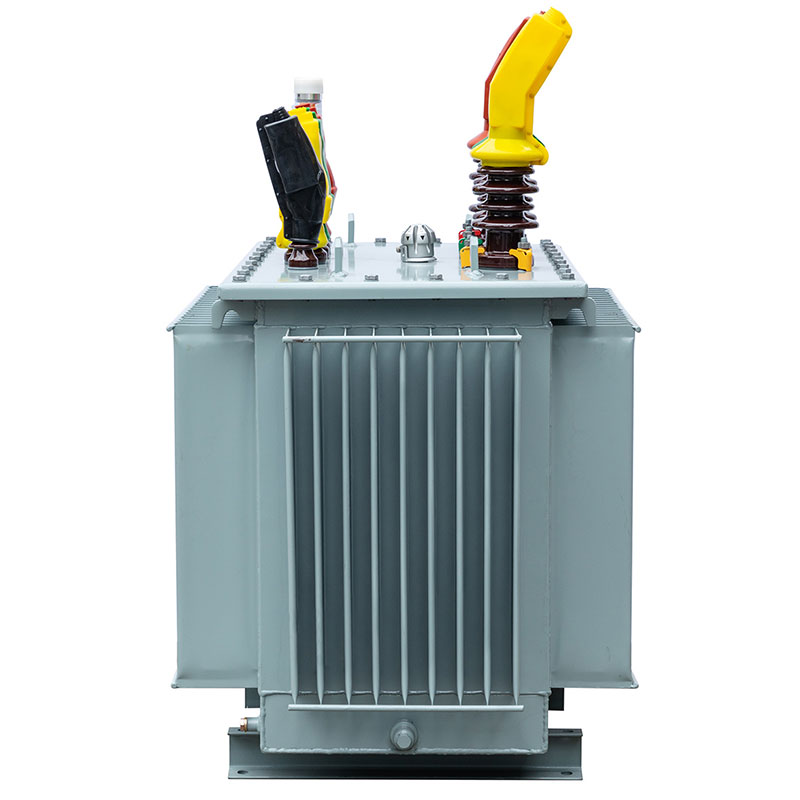

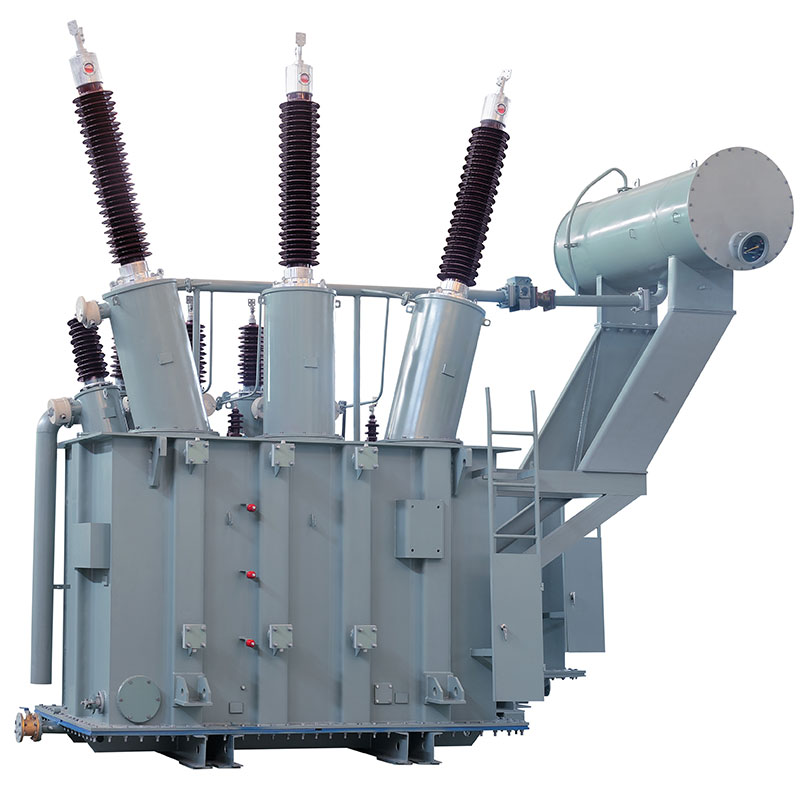

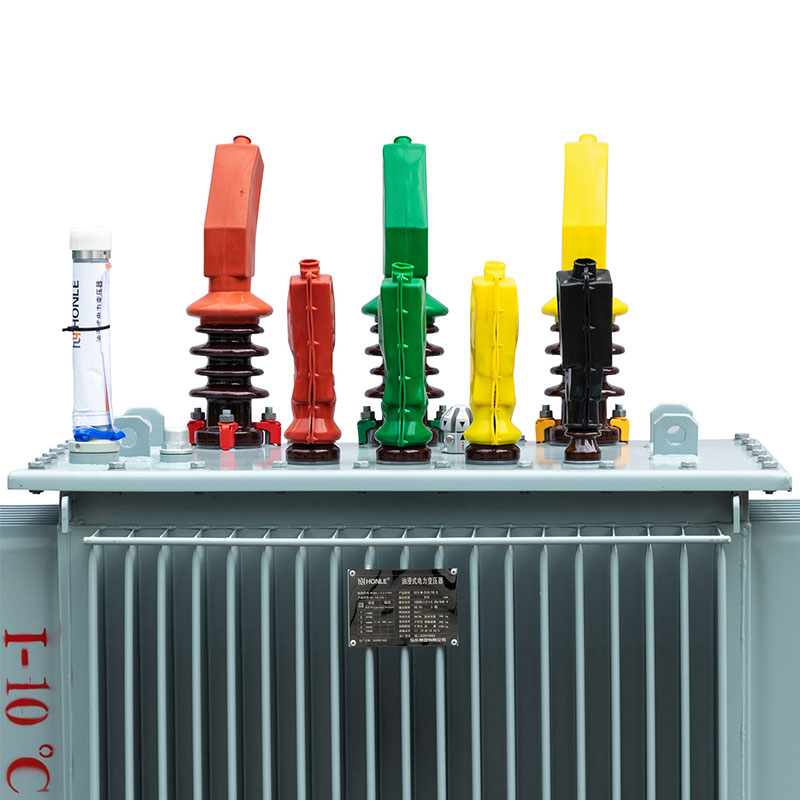

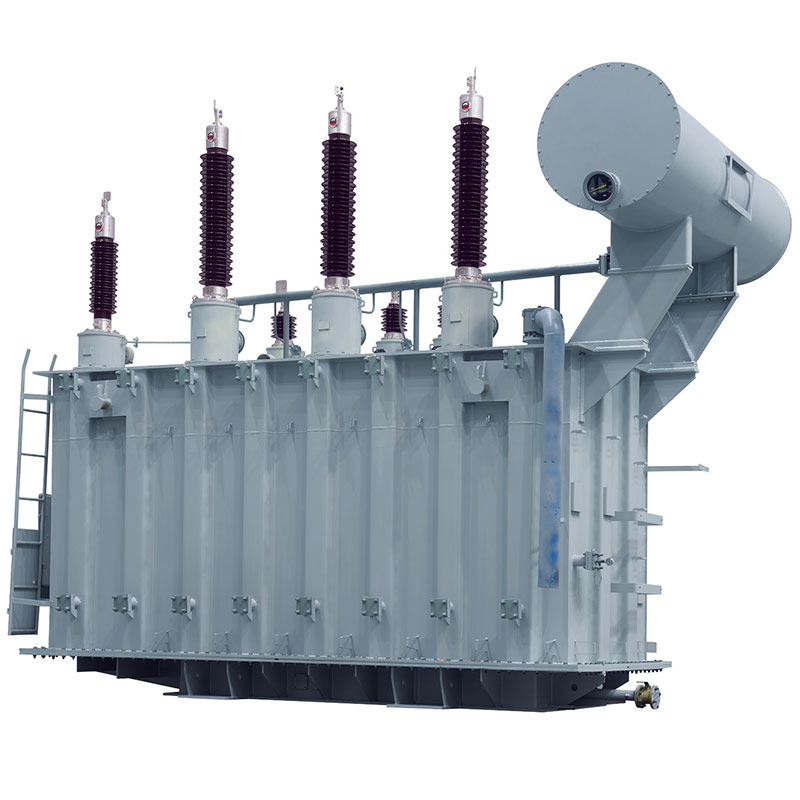

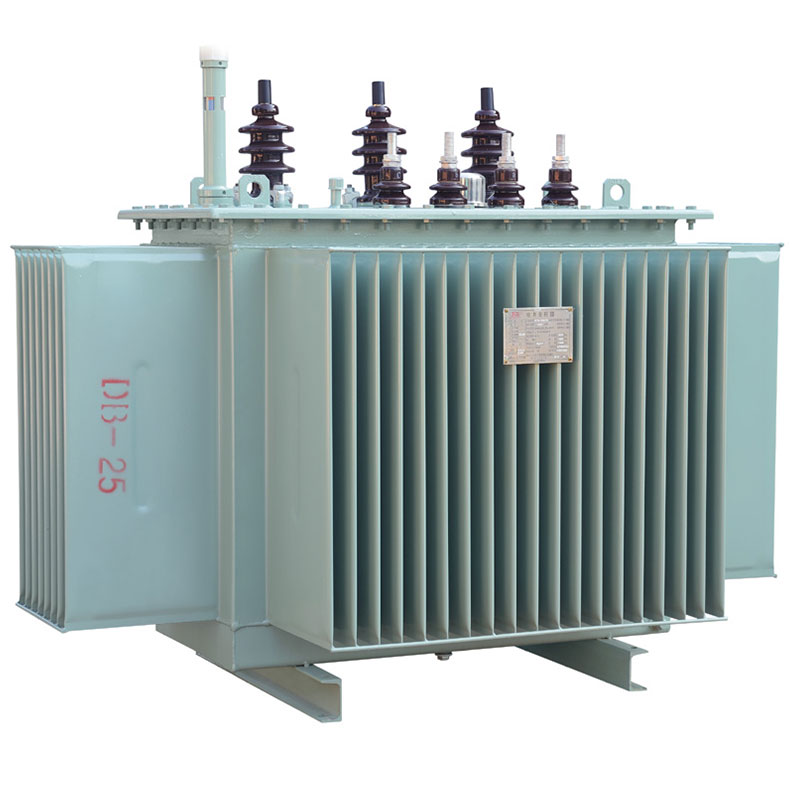

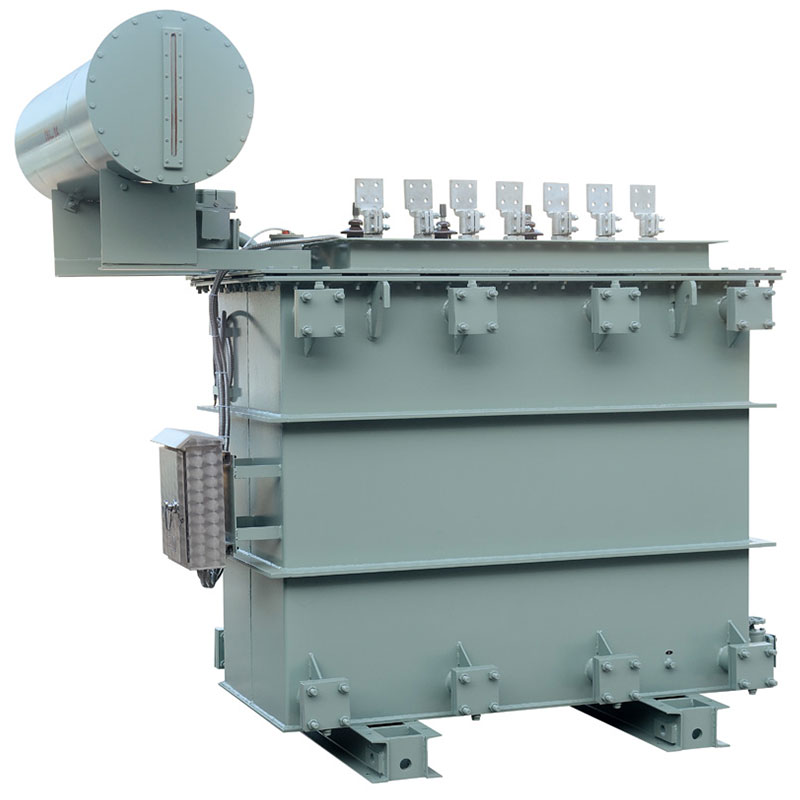

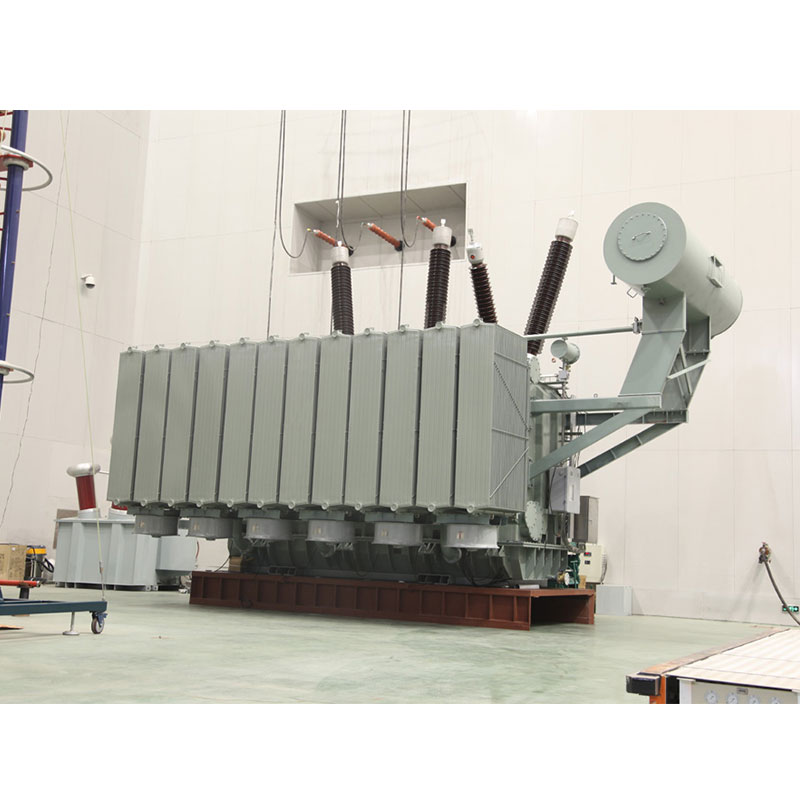

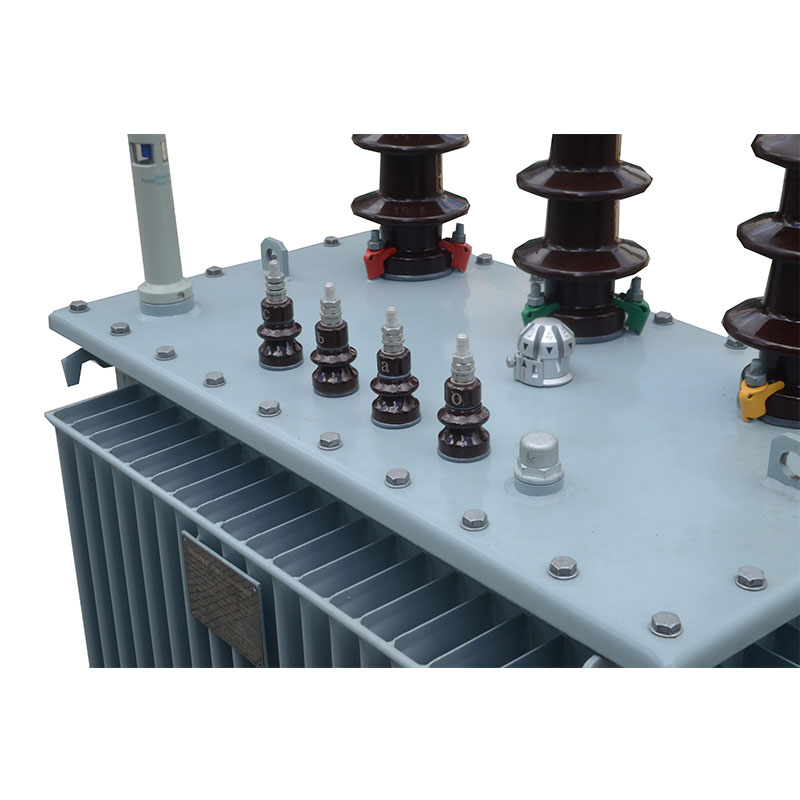

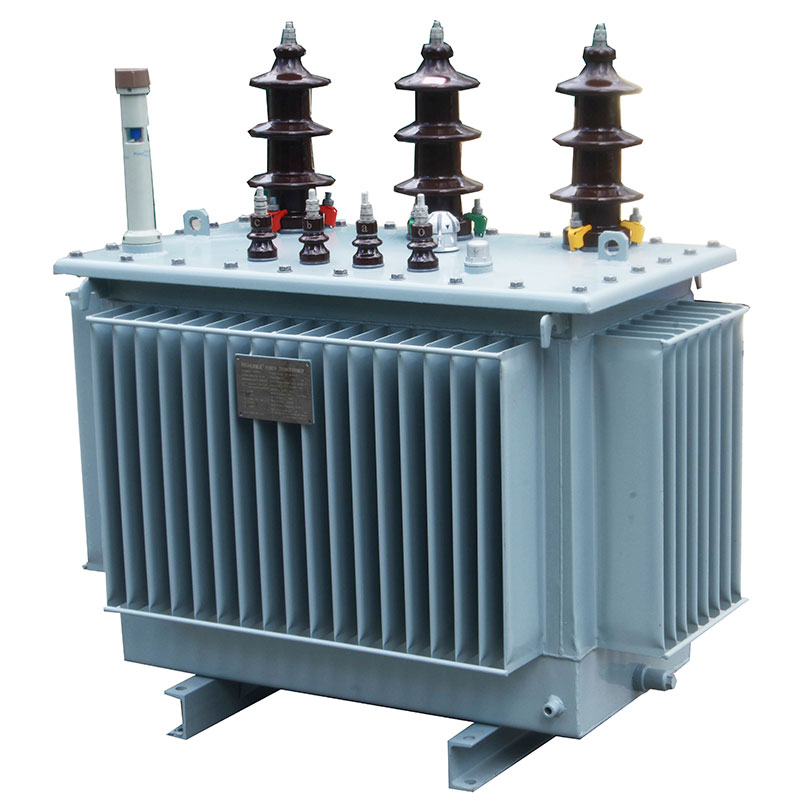

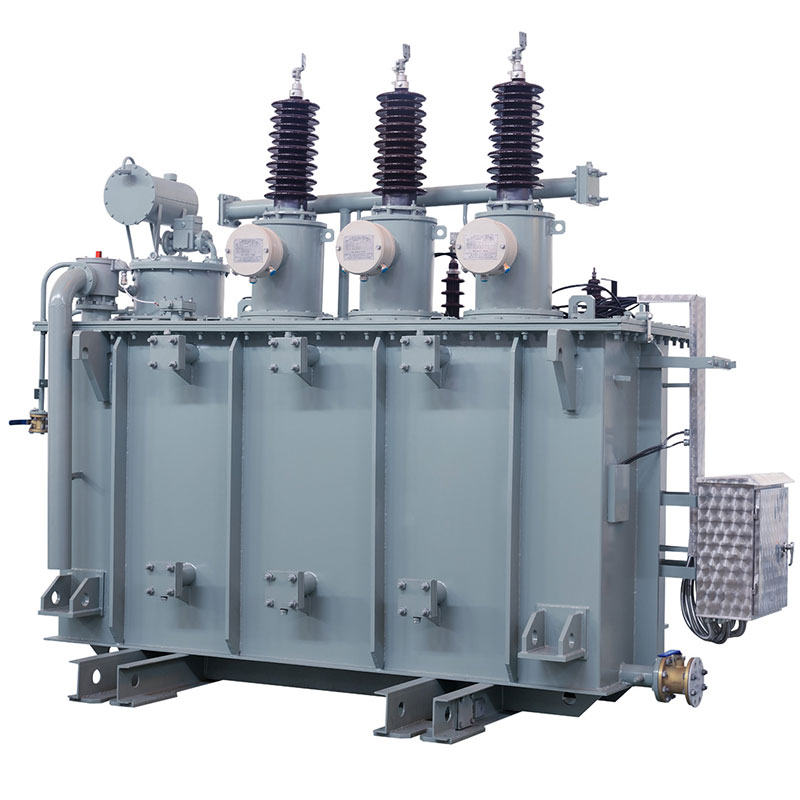

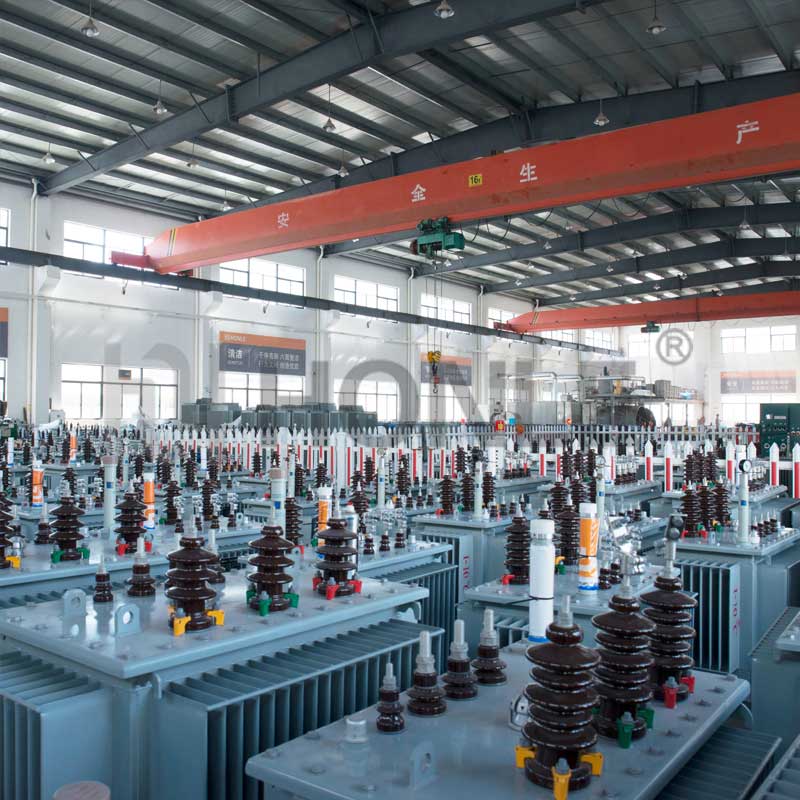

S11, S9 Oil immersed transformer

Oil transformer is insulating by oil. It is a special type of oil which has excellent electrical insulating properties and is stable at high temperatures. Transformer oil is used in oil-filled electrical power transformers to insulate, stop arcing and corona discharge, and to dissipate the heat of the transformer (i.e. act as a coolant).

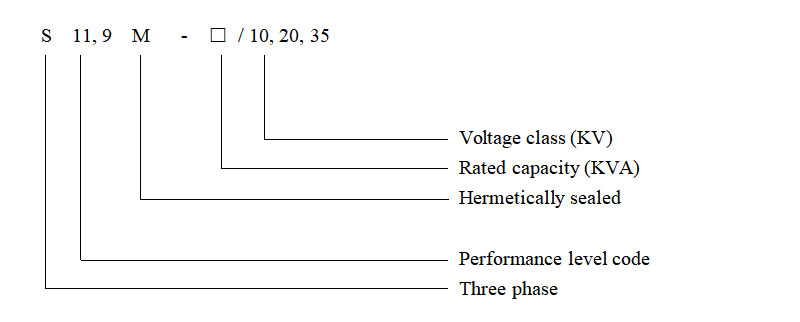

Product Introduction

Service conditions

• Installation height: altitude shall not exceed 1000m

• Ambient temperature: -40℃~40℃

S11M /20 Main technical parameters

Rated capacity	Voltage combination			Connection group	Loss(KW)		No-load current	Short-circuit impedance
Rated capacity	Voltage combination			Connection group	Loss(KW)		No-load current	Short-circuit impedance
(KVA)	HV(KV)	High-voltage tapping range	LV(KV)	Symbol	No-load	On-load	(%)	(%)
(KVA)	HV(KV)	High-voltage tapping range	LV(KV)	Symbol	No-load	On-load	(%)	(%)
30	20/10	±5×2.5% ±2×2.5%	0.4	Dyn11	0.09	0.66	2.1	5.5
50					0.13	0.96	2.0
63					0.15	1.145	1.9
80					0.18	1.37	1.8
100					0.2	1.65	1.6
125					0.24	1.98	1.5
160					0.29	2.42	1.4
200					0.33	2.86	1.3
250					0.4	3.35	1.2
315					0.48	4.01	1.1
400					0.57	4.73	1.0
500					0.68	5.66	1.0
630					0.81	6.82	0.9	6.0
800					0.98	8.25	0.8
1000					1.15	11.33	0.7
1250					1.35	13.2	0.7
1600					1.63	15.95	0.6
2000					1.95	19.14	0.6
2500					2.34	22.22	0.5

S11M /10 Main technical parameters

Rated capacity (KVA)		30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600
Voltage combination	HV(KV)	6 6.3 6.6 10 10.5 11
	High-volatge tapping range	±5%, ±2x2.5%
	LV(KV)	0.4
Connection group	Symbol	Yyn0, Dyn11

S9M /10 Main technical parameters

Rated capacity (KVA)		30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600
Voltage combination	HV(KV)	6 6.3 10 10.5 11
	High-volatge tapping range	±5%
	LV(KV)	0.4
Connection group	Symbol	Yyn0, Dyn11, Yzn11

S9M /35 Main technical parameters

Rated capacity (KVA)		800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000, 20000, 25000, 31500
Voltage combination	HV(KV)	35, 38.5
	High-volatge tapping range	±5%, ±2x2.5%
	LV(KV)	3.15 6.3 10.5
Connection group	Symbol	Yd11, YNd11
